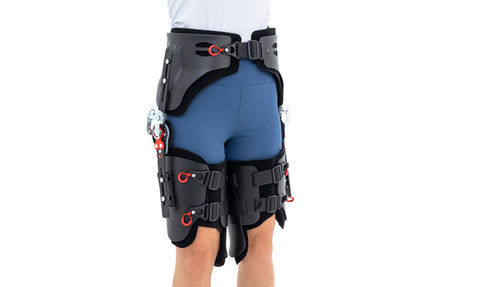

Positioning hip support AM-SB-05 DUAL

for hip surgeryorthopedicuniversal

Description
Hip replacement: a surgical procedure that replaces a damaged hip joint with an artificial implant. After surgery patients should maintain upright posture from the first postoperative day and avoid pivoting, twisting, crossing the operated leg past the midline, internal rotation or hip flexion beyond 90° to protect the implant. The AM-SB-05 DUAL hip orthosis with the Hip Joint Control Flex abduction system is indicated to assist in these precautions and provide controlled immobilization when required.

Product overview
AM-SB-05 DUAL is a universal hip orthosis designed to control flexion/extension and abduction/adduction. Constructed from Active3D™ with soft universal abdominal and thigh supports and an anatomic monocentric splint with ROM adjustment, the device stabilizes the hip while allowing precise, progressive limitation of motion. Soft parts incorporate ABS elements with Velcro fasteners; the splint uses a press-slide mechanism for smooth length adjustment. The orthosis reinforces the joint, supports postoperative management, may improve gait pattern and assists treatment of muscle contractures. Always consult a physician before restricting hip motion.

Key features

• Supports correct gait pattern
• Anatomic monocentric splint for stable stabilization
• Adjustable splint for abduction and ROM control
• Semi-rigid plastic elements for targeted reinforcement
• Design to promote patient compliance and ease of use
• Universal abdominal and thigh supports

Purpose of use

• After hip joint replacement (endoprosthesis)
• Hip dislocation or high risk of dislocation
• Hip dysplasia (anterior/posterior)
• Osteoarthritis / coxarthrosis
• Hip joint instability
• Pre- and post-operative care
• Hip immobilization
• Muscle contractures

Sizes and dimensions
Size: Universal
Waist circumference: min 75 cm – max 125 cm (29.5" – 49.2")
Thigh circumference (5 cm below the groin): min 40 cm – max 70 cm (15.7" – 27.6")
Total length of product: min 54 cm (21.3") – max 68 cm (26.8")

Materials and technology
Active3D™: thermoformed closed-cell foam fabric that reduces pressure and abrasions, is waterproof, does not absorb sweat, is easy to clean, and features external self-gripping layers for custom shaping of orthopaedic devices.

Splint SAFE HIP: lightweight, universal aluminum/steel splint controlling hip flexion angle and lower-limb abduction. Features adjustable hip-basket height and width, swivel quick-release buckles, 3D ABS supports with height and rotation adjustment, medial knee stabilizer, soft thermoformed 3D cushions with ventilation channels, reinforced hexagonal screw angle locks (angles: 0, 15, 45, 60, 80, 100 degrees) requiring an Allen key, and a precise abduction adjustment cam with reinforced hinge for high-load stability.

Paddings: 3D relief supports made of supportive foams/EVA with skin-friendly covers, anatomically shaped for comfort and therapeutic effect.

Instructions and documents
Product setup instructions and user manual are provided by the manufacturer; consult them before first use.

Technical specifications

• Brand: 4medic
• Code: AM-SB-05 DUAL
• Trade name: ORTEZA BIODRA
• Model: ORTEZA BIODRA AM-SB-05 DUAL
• Material: Active3D™ (thermoformed closed-cell foam)
• Splint: SAFE HIP splint (aluminum alloy and steel, ABS 3D supports)
• Paddings: 3D thermoformed cushions and EVA/supporting foams
• Size: Universal
• Waist circumference range: min 75 cm – max 125 cm
• Thigh circumference range: min 40 cm – max 70 cm
• Total product length: min 54 cm – max 68 cm
• Medical classification: Class I medical device (EU Regulation 2017/745)
