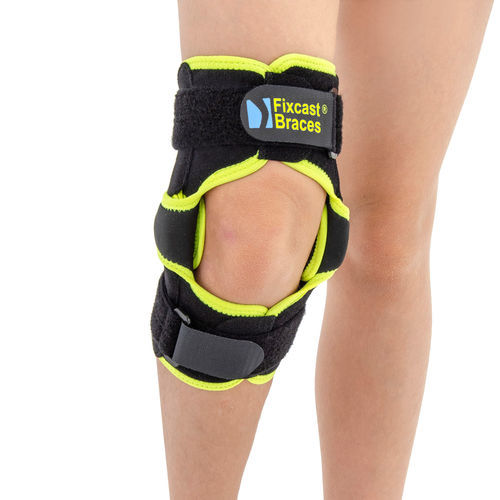

Surgical knee support FIX-KD-15

orthopedic surgerypediatricpolyester

Short description
Paediatric knee brace for sprain, strain, dislocation and ligament or meniscal injuries. Waterproof and breathable orthosis with AeroSpace II™ fabric and adjustable 1R Orthodesign magnetic hinge designed for small patients.

Product Features

• Paediatric knee brace
• Class I medical device
• Suitable for continuous (24/7) therapy
• Waterproof and breathable
• 1R Orthodesign magnetic joint
• Aluminium splints and padded hinge covers
• Cast replacement option

Purpose of use

• Knee dislocation
• Knee sprain and strain
• Knee instability
• ACL, PCL, MCL and LCL injuries
• Meniscus tears and injuries
• Juvenile Rheumatoid Arthritis (JRA)
• Non-specific osteitis
• Osteonecrosis
• Post-surgical stabilization

Product overview
FIX-KD-15 is a professional paediatric knee orthosis intended to support, stabilize and, when required, immobilize the knee joint. The sleeve is made from AeroSpace II™, a distance-elastic 3D knitted fabric combining polyester for strength and spandex for elasticity. The external self-gripping layer ensures secure fit and easy adjustment while the openwork structure promotes air flow and sweat drainage. The design reduces muscle vibrations and improves comfort for prolonged wear.

Design and adjustability
The brace contours the lower limb and accommodates swelling. Self-gripping fabric and open construction facilitate fitting on injured knees. Low-profile, lightweight hinges with aluminium splints provide controlled range-of-motion; splints can be locked for immobilization. Padded hinge covers reduce pressure on bony prominences such as the femoral condyles.

1R Orthodesign hinge features
The 1R Orthodesign system offers adjustable-angle settings in 15° increments with a compact clock diameter under 30 mm. Adjustment uses removable steel rivets (extracted with the supplied magnet) rather than Allen screws. A ratchet locking ring prevents unintended readjustment. The hinge assembly includes a shin offset and an oval underside element for attaching 3D soft side cushions. Splints can be fine-tuned to limb shape by slight bending using the recommended bending tool.

Material and benefits
AeroSpace II™ provides full breathability, low weight and a velvety feel. The material ensures appropriate compression and fit, helping to maintain therapeutic temperature, reduce pain and support healing. Components are sized and profiled for pediatric anatomy.

Available sizes

• Size 1: knee circumference 20–26 cm — typical age 2–6 years — total length 24 cm
• Size 2: knee circumference 26.5–38 cm — typical age >6 years — total length 28 cm

Fits both knees. Product shipped in random color.

Downloads
Declaration of Conformity (EC); Product-specific setup; User manual.

caractéristiques / spécifications techniques

• Code: FIX-KD-15
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: FIX-KD-15
• Intended use: paediatric knee brace for sprain, strain, dislocation, ligament and meniscus injuries, JRA, osteitis, osteonecrosis, post-surgical use
• Material: AeroSpace II™ (distance-elastic 3D knitted fabric; polyester + spandex; external self-gripping layer; breathable; lightweight)
• Hinges: low-profile, lightweight; 1R Orthodesign magnetic joint with 15° increments, removable rivets via magnet, ratchet locking ring
• Splints: aluminium, adjustable, lockable for immobilization
• Padded hinge covers to reduce pressure on bony prominences
• Sizes: 1 (20–26 cm knee circumference), 2 (26.5–38 cm)
• Total lengths: size 1 = 24 cm; size 2 = 28 cm
• Fits both knees
• Waterproof: yes
• Breathable: yes
• Therapy: suitable for 24/7 use
• Class: Class I medical device (per applicable regulation)
• Accessories: splint bending tool recommended for splint adjustments
