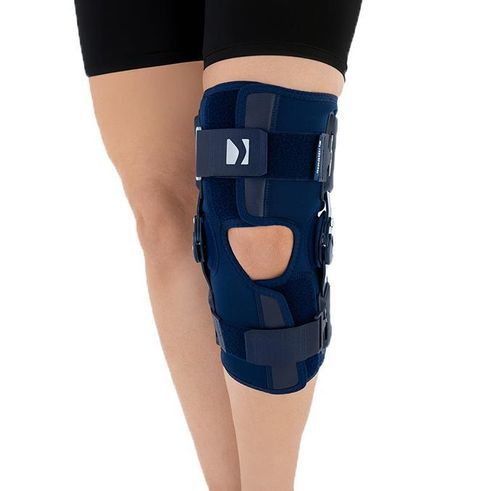

Orthopedic knee support AM-OSK-O/1R-01

adultwith strapadjustable

Description
The wrap-around open knee brace is made of perforated spacer foam with a soft lining and features two independent sets of Velcro straps. The device integrates two-sided, anatomically shaped splints with a drop-lock ratchet that permits ROM adjustment in 15° increments for controlled rehabilitation. Splints are arranged in an X configuration to conform to the limb and stabilise the joint. Internal perforation enhances skin breathability and reduces overheating. The wrap-around design allows easy application for elderly or overweight patients.

Purpose of use

• Knee dislocation
• Knee twist and sprain
• Side instability of the knee joint
• Injuries to knee ligaments LCL, MCL and ACL
• Knee ligament reconstruction
• Other orthopaedic surgeries

Sizes
S — 30-34 cm (11.8"-13.4") — measure around knee circumference
M — 34-38 cm (13.6"-15.0") — measure around knee circumference
L — 38-42 cm (15.2"-16.5") — measure around knee circumference
XL — 42-46 cm (16.7"-18.1") — measure around knee circumference
XXL — 46-50 cm (18.3"-19.7") — measure around knee circumference
XXXL — 50-55 cm (19.9"-21.7") — measure around knee circumference
XXXXL — 55-59 cm (21.9"-23.2") — measure around knee circumference
Total length of product: 36 cm (14.2")

Technology / Materials
ProSix™: 3D elastic fabric with external stabilising layer, duothermic spacer foam for air permeability and compression, and a breathable cotton skin-contact layer; Oeko-Tex Standard 100 certified.
EASY FIT Solution: patented system with universal inserts for clip attachment with elastic elements and angular movement enabling precise circumferential strap guidance.
Splint: 1R Orthodesign splint with flexion/extension angle adjustment in 15° steps using removable steel pins and a ratchet locking ring; tibial offset for precise fit; magnetic tool supplied for pin removal; splints can be slightly re-bent for individual adaptation in some cases.
Paddings: 3D relief supports made of supporting foams or EVA, anatomically shaped to isolate rigid elements and ensure skin-friendly contact.

Technical specifications

• Brand: 4medic
• Code: AM-OSK-O/1R-01
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: AM-OSK-O/1R-01
• Device type: Open knee brace with ROM adjustment (15° steps)
• Material highlights: ProSix™ (3D fabric, spacer foam, cotton lining)
• Adjustable splints: 1R Orthodesign (15° steps, magnetic pin removal, ratchet locking)
• Design: Wrap-around, perforated for breathability, double-sided shaped splints in X arrangement
• Total length: 36 cm (14.2")
• Classification: Class I medical device (Regulation (EU) 2017/745)
