Orthopedic knee support OKD-40

adultanatomicalpolyester

Overview

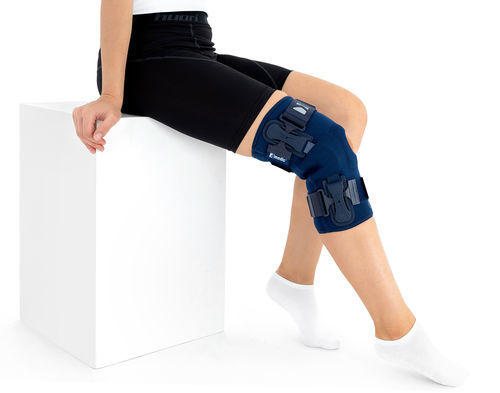

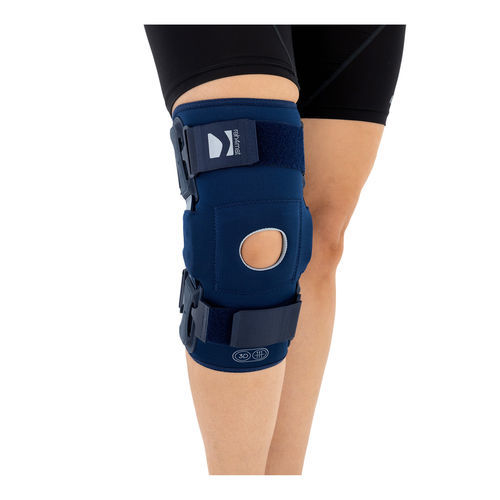

The OKD-40 professional knee brace provides stabilisation and controlled rehabilitation of the knee joint, with particular emphasis on patellofemoral stability. The brace features a closed design fully encompassing the knee joint, thigh and lower leg to increase lateral and anterior-posterior stability, prevent shifting during movement and ensure even compression.

Key features and functional description
The OKD-40 hinged knee brace includes an anatomical patellar donut to stabilise the patella, maintain correct tracking and reduce patellofemoral overload. Durable lateral splints with dual-axis (polycentric) hinges ensure anatomical axial alignment and protect against uncontrolled joint displacement. Dual-axis hinges replicate the natural biomechanics of the knee where rolling and gliding occur simultaneously during flexion and extension. Hinges integrate the patented EASY FIT SOLUTION system, developed to enhance fit of orthopaedic braces to anatomical contours and individual therapeutic needs.

Materials and comfort
Manufactured from breathable, skin-friendly materials that allow effective moisture management and prevent overheating for all-day comfort. The product uses the AeroSpace TM raw material: a distance elastic 3D knitted fabric formed of two facings and an interlacing that creates appropriate thickness and relieving properties. AeroSpace is made of high-quality polyester yarn for mechanical strength and spandex for flexibility; it is low weight, highly flexible, highly openwork for sweat drainage and fresh air, neutral to the secured joint, and reduces muscle vibrations.

Technologies and stiffenings
Splints [2W] polycentric, dual-axis hinges equipped with a rack-and-pinion mechanism to closely replicate anatomical knee joint movement. Hinges are made of high-quality aluminum alloy: lightweight, resistant to perspiration and salt, and sufficiently rigid for device performance. EASY FIT SOLUTION uses universal inserts to attach clips with elastic elements, enabling angular movement, circumferential guidance of straps and precise adjustment to user body curves.

Indications / Purpose of use

• Patellar instability (kneecap lateralization)
• Patellar chondromalacia
• Knee osteoarthritis
• Anterior knee pain
• Patellar clicking
• Patellofemoral joint inflammation
• ACL, PCL, LCL, and MCL injuries
• Knee sprain
• Meniscus injuries
• Soft-tissue injuries
• Postoperative stabilization

Sizes
Size | Knee circumference | How to measure
S | 30 – 34 cm | see sizing guidance image
M | 34 – 38 cm | see sizing guidance image
L | 38 – 42 cm | see sizing guidance image
XL | 42 – 46 cm | see sizing guidance image
2XL | 46 – 50 cm | see sizing guidance image

Additional notes
Fits both knees. Total length of the product (S – 2XL): 32 cm.

Technical characteristics / specifications

• Brand: 4medic
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: OKD-40
• Code: OKD-40
• Medical class: Class I medical device
• Design: Closed design encompassing thigh, knee and lower leg
• Patellar support: Anatomical patellar donut for patellar stabilization and correct tracking
• Hinges: Dual-axis polycentric hinges (splints [2W]) with rack-and-pinion mechanism
• Hinge material: High-quality aluminum alloy
• Fit system: EASY FIT SOLUTION patented system with universal inserts for elastic clip attachments and strap guidance
• Primary material: AeroSpace 3D knitted fabric (polyester yarn + spandex) — breathable, low weight, high flexibility
• Purpose: stabilization, rehabilitation, patellofemoral support, postoperative stabilization
• Sizes: S, M, L, XL, 2XL — knee circumference range 30–50 cm
• Total product length: 32 cm (S–2XL)
