Orthopedic knee support OKD-03

adultanatomicalfoam

Description
Lower limb extension immobilizer OKD-03 is manufactured from Active3D™ thermoformed fabric designed for knee stabilization after dislocation, sprain, ligament injury or orthopedic surgery.

The brace is equipped with:

• Open, soft sleeve allowing adjustment to a range of thigh and calf circumferences.
• VELCRO fastening system to secure the device to the limb and provide effective stabilization.
• Anatomically profiled aluminium splints with independent fixing system to the sleeve for customizable reinforcement.
• Kneecap protection with adjustable fastener for proper positioning.

Construction enables individual, precise fitting to the patient’s limb and ensures reliable stabilization during recovery.

Purpose of use

• Knee dislocation
• Knee twist and sprain
• Medial or lateral instability of the knee joint
• Injuries of LCL, MCL and ACL
• Post‑operative support after knee ligament reconstruction
• Other orthopedic interventions requiring knee extension immobilization

Sizes
Size | (A) Thigh circumference 15 cm above the center of the patella | (B) Calf circumference 15 cm below the center of the patella | (C) Product length | How to measure
Single size | 40-65 cm (15.7"-25.6") | 30-50 cm (11.8"-19.7") | 55 cm (21.7") | see measuring diagram
Total length of product: 55 cm (21.7")

Materials / Technology
Active3D™
Active3D™ is a thermoformed, closed-cell foam fabric. It reduces pressure and abrasion from orthopaedic stays and aluminium splints. The material is waterproof, non-absorbent, easy to clean and features external self-gripping layers; it can be thermoformed for final brace shaping.

Stiffenings

• Flat aluminium stays — made of a special aluminium alloy to provide stiffness with minimal weight; rounded ends to prevent tissue damage. Width and thickness determine stabilization level; these stays are not pre-shaped and require individual bending for final fit.
• Profiled aluminium stays — pre-profiled splints that should be precisely contoured to the patient's anatomy by a clinician or technician to ensure correct protection and support.

Paddings
3D supports — removable relief pads made of supporting foam or EVA combined with skin-friendly materials; anatomically shaped to separate rigid elements (splints, stays) from direct skin contact.

Gallery notes

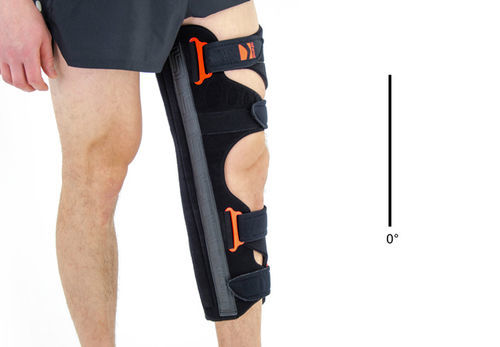

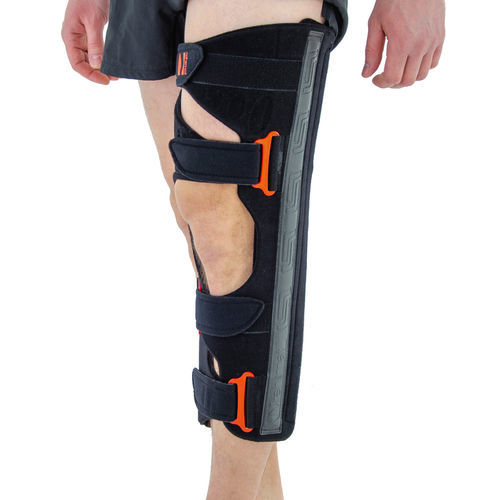

Product images show multiple views and fitting examples of the OKD-03 immobilizer.

Technical specifications

• Brand: 4sport
• Product name / Trade name: LOWER-EXTREMITY SUPPORT
• Model / Code: OKD-03
• UNSPSC code: 42241707
• UMDNS code: 18029
• Intended use: lower limb extension immobilizer for knee stabilization after dislocation, sprain, ligament injuries, reconstructions and orthopedic surgeries
• Material: Active3D™ thermoformed closed-cell fabric (waterproof, non-absorbent, easy to clean)
• Stiffening elements: anatomically profiled aluminium splints (flat or profiled stays; require individual bending for final fit)
• Fastening: VELCRO system for adhesion and stabilization
• Kneecap protection: included with adjustable fastener
• Size: Single universal size — Thigh circumference 40-65 cm; Calf circumference 30-50 cm
• Total length: 55 cm (21.7")
• Device class: Class I medical device
