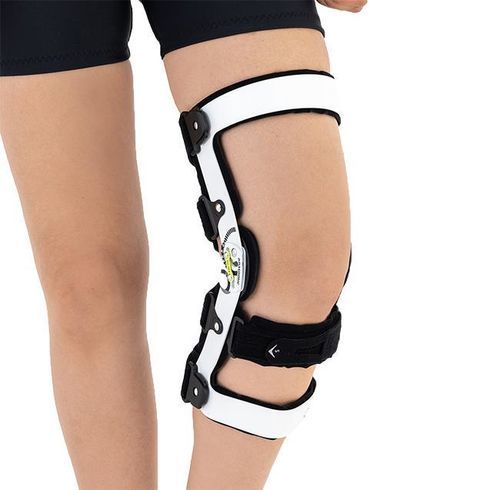

Orthopedic knee support ATOM/2RA

adultanatomicaladjustable

Overview
The 4medic ATOM/2RA is a dynamic knee frame (4-point leverage brace) designed to resist varus and valgus forces and to control posterior tibial translation. It provides dynamic control of tibial translation for protection, rehabilitation and stabilization of knee ligaments, particularly the ACL. The device is Class I, waterproof and latex-free.

Product description
ATOM/2RA consists of an aluminium 6061 T6 frame, powder-dyed for corrosion and moisture resistance, fitted with two anatomic polycentric hinges (2RA Precision) that replicate physiological knee motion and allow range-of-motion (ROM) adjustment. The inner surface features AirDistance II comfort foam covered with cotton and terry to reduce skin irritation. The brace includes five straps and protective cushions to minimise migration.

4 Points of leverage system — purpose and mechanism
The 4-point leverage system reduces knee load and protects ligaments by limiting posterior tibial translation. The four points are:

• 1 — anterior thigh contact (aluminium frame)
• 2 — posterior calf contact (frame)
• 3 — posterior thigh strap
• 4 — anterior calf strap providing tibial preload by posteriorly directed force

This reduces ACL tension (maintaining slight tension to support healing), limits ligament overload during standing/sitting and helps prevent additional soft tissue injury. Indications include preoperative and postoperative protection and rehabilitation (remodeling phase ~12–18 months).

Key features

• Dynamic control of tibial translation
• 4 Points of leverage technology
• Double-axis anatomic splints (2RA Precision) with ROM adjustment
• ROM adjustment in every 20°
• Splints provide hyperextension block and selectable flexion/extension stops
• Waterproof frame (resistant to sweat and moisture)
• Internal AirDistance II soft lining (comfort foam with cotton/terry cover)
• Five straps with silicone to prevent slipping
• Latex-free
• Class I medical device

Purpose of use

• Mild or severe ACL, PCL, MCL and LCL instability
• Rehabilitation after ACL or PCL reconstruction
• Combined ACL/PCL injuries
• Knee hyperextension
• Valgus and varus correction/support

Sizes
Size | (A) Thigh circumference 15 cm above patella center | (B) Calf circumference 15 cm below patella center | (C) Splint length
XS: 36–40 cm (14.2"-15.7") | 26–30 cm (10.2"-11.8") | 37 cm (14.6")
S: 40–44 cm (15.7"-17.3") | 30–34 cm (11.8"-13.4") | 37 cm (14.6")
M: 44–48 cm (17.3"-18.9") | 34–38 cm (13.4"-15") | 37 cm (14.6")
L: 48–52 cm (18.9"-20.5") | 38–42 cm (15"-16.5") | 37 cm (14.6")
XL: 52–56 cm (20.5"-22") | 42–46 cm (16.5"-18.1") | 37 cm (14.6")

Additional product notes
Right and left specific. Total product length (XS–XL): 38 cm. Custom-made braces are non-returnable. Supplied with a brace bag. Replacement items available: set of 3D covers; set of 3D covers and circumferential strips.

Technology / Materials

• Frame: aluminium 6061 T6, powder-dyed
• Internal lining: AirDistance II (thermoformed comfort foam, waterproof, skin-friendly)
• Splints: 2RA Precision — double-axis polycentric anatomic splints; flexion stops at 30°, 55°, 75°, 95°, 110°; extension stops 15° or 75°; angle adjustment secured; standard splint lengths 290 mm and 390 mm
• Paddings: 3D relief supports in EVA or supporting foams

Setting up & Documentation
Hinge (ROM) adjustment, splint settings and fitting instructions are provided in the product manual and setup documentation (instruction/setting up PDF available).

Technical specifications

• Brand: 4medic
• Model / Code: ATOM/2RA
• Trade name: LOWER-EXTREMITY SUPPORT
• Device class: Class I medical device (Regulation (EU) 2017/745)
• Frame material: Aluminium 6061 T6, powder-dyed
• Internal lining: AirDistance II comfort foam (cotton & terry cover)
• Hinges: 2 anatomic hinges (2RA Precision), polycentric, ROM adjustable every 20°
• Straps: 5 straps with silicone to prevent slipping
• Splint standard lengths: 290 mm and 390 mm; splint working length indicated as 37 cm in sizing
• Flexion stops: 30°, 55°, 75°, 95°, 110°; Extension options: 15° or 75°
• Waterproof: yes
• Latex-free: yes
• Recommended use: athletes, ACL/PCL protection and rehabilitation
• Included: brace bag
