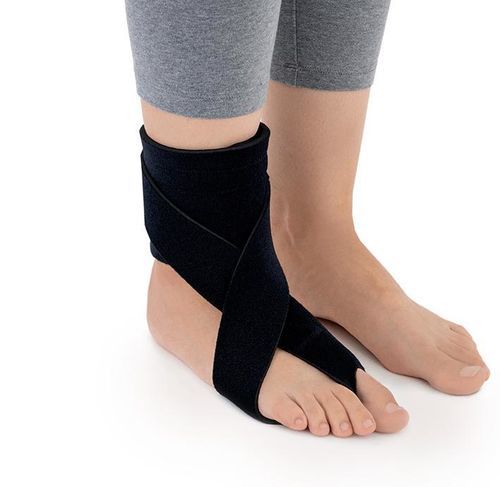

Ankle and foot orthosis OSS-OS-07

AFOopen heeldynamic

Product overview
The OSS-OS-07 foot drop brace is a functional orthosis designed to assist dorsiflexion during walking. It provides dynamic assistance without rigid immobilisation and is intended for adults with weakness of the dorsiflexor muscles, regardless of cause.

Key features and benefits
The brace is made from soft, skin-friendly UniPren™ material, offering flexibility, light weight and all-day comfort. Its design allows one-hand application, suitable for users with unilateral weakness. The product operates dynamically via cross straps that lift the forefoot and a main stabilizing strap that supports the ankle while preserving natural mobility. An additional strap around the big toe helps lift the toes and maintain forefoot alignment. Open-heel design enhances proprioceptive feedback and reduces shifting inside footwear. The brace is discreet inside everyday shoes and does not impose rigid immobilisation.

Materials

• UniPren™ — 3-layer material: external elastic polyamide cover knit with self-adhesive function, internal neoprene foam core, elastic jersey cover knit. Soft, highly flexible, does not imprint on skin; self-adhesive properties facilitate application.

Mechanism of action
The OSS-OS-07 uses a dynamic assistance system: cross straps lift the forefoot during the swing phase to prevent toe drag. The main stabilizing strap supports the ankle while preserving mobility. The toe-encircling strap helps maintain forefoot alignment, improving gait biomechanics and the push-off phase.

Indications / Purpose of use

• Peroneal nerve injury
• Common peroneal nerve neuropathy
• Weakness of dorsiflexor muscles
• Post-stroke conditions
• Multiple sclerosis (MS)
• Peripheral polyneuropathies (e.g., diabetic neuropathy)
• Lower limb injuries and post-surgical conditions
• Neurological disorders affecting gait
• Reduced muscle strength in the foot and lower leg

Sizes / Dimensions
Size: Universal
Foot length (A): 22–30 cm
Ankle circumference (B): min 20 cm – max 33 cm
Total product height: 10 cm
Fits both feet.

Additional information
Open-heel design for improved proprioception and reduced shifting. Lightweight, suitable for use inside everyday footwear. One-hand application and wide adjustment range allow personalised fit.

Technical specifications

• Brand: 4medic
• Code: OSS-OS-07
• Trade name: FOOT ORTHOSIS
• Model: OSS-OS-07
• Material: UniPren™ (elastic polyamide cover knit with self-adhesive function + neoprene foam core + elastic jersey cover knit)
• Operation: dynamic dorsiflexion assistance via cross straps and toe strap
• Design: open heel
• Size: Universal (fits both feet)
• Foot length range: 22–30 cm
• Ankle circumference range: 20–33 cm
• Total product height: 10 cm
• Intended users: adults with drop foot due to nerve, muscle or neurological conditions
• Medical classification: Class I medical device (Regulation (EU) 2017/745)
• UMDNS code: 17873
