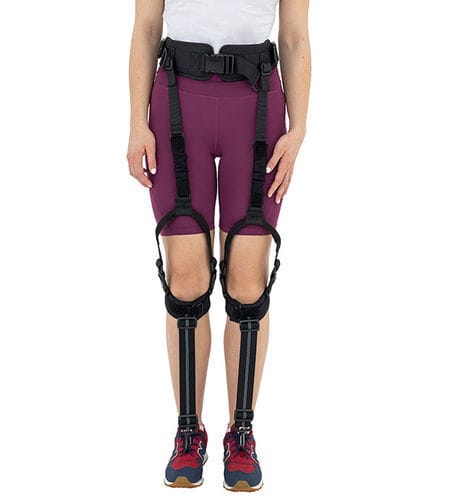

Orthopedic knee support OKD-10 DUAL

positioningadultfoam

Product overview
OKD-10 DUAL dynamic lower limb raising legs orthosis is an innovative device that helps to raise the leg during walking for people with severely limited mobility. The orthosis assists leg elevation when the lower limb is momentarily relieved, facilitating the next step and improving physiological limb mobility. The device is very slim and can be worn under clothing to remain discreet.

Components and design
OKD-10 DUAL consists of: universal carrying belt, dynamic thigh system, patellar strap and dynamic foot lifting system. The carrying belt features a universal system for setting tighten and compression and a rear circumferential adjustment. The belt interior is lined with skin-friendly SoftComfort™ material which allows the skin to breathe. The back of the belt includes a thermoformed lightweight pad that provides a support point and helps maintain upright posture during gait.

Dynamic thigh system
The thigh system includes a set of springs to facilitate knee flexion, an attachment buckle with adjuster and a stiffened knee stirrup. Springs enable active raising of the lower limb during gait even in users with severe muscle weakness or stiffness. Springs are covered with pressure-relieving ActivePren™ material to eliminate risk of pressure on the skin and to ensure comfort. The knee stirrup is additionally stiffened to keep knee alignment and coated with the durable PowerLift™ material. The thigh assembly connects to the patellar strap via an attachment clamp; the strap is lined with non-slip silicone to prevent movement during use.

Foot elevation
A dynamic rubber band fitted to the patellar strap effectively elevates the foot and facilitates movement during gait. The orthosis can work alternately on both legs, facilitating knee flexion and foot movement. It can be used with or without the patellar strap (possible integration with standard knee braces) and is suitable for use in rehabilitation with standing frames.

Purpose of use

• neurological disorders
• rheumatological diseases
• post-injury conditions
• birth defects

Materials and technology
ActivePren™: active three-layer material (elastic jersey covers + neoprene foam core) characterized by softness, high flexibility and skin-friendly surface (does not leave imprints).
AirRubber III™: unidirectional elastic rubber braid that increases length (not width) improving compression, allows air flow and gentle skin massage under compression.
PowerLift™: three-layer off-loading material with a strong abrasion-resistant outer polyamide fabric with polyurethane coating and Teflon finish, EVA foam and soft cover knit; waterproof and highly durable.
SoftComfort™: soft comfort foam laminated with a delicate cover knit, perforated for breathability; designed for very sensitive skin; Oeko-Tex Standard 100 and REACH compliant.

Sizes and measurement
Waist / belt:
Size: Single size | Waist circumference: min 60 cm – max 145 cm (min 23.6" – max 57") | How to measure: hip-lumbar circumference

Knee / thigh circumference:
Size M | Circumference under the knee: 28-33 cm (11"-13")
Size L | Circumference under the knee: 33-38 cm (13"-15")
Size XL | Circumference under the knee: 38-43 cm (15"-16.9")
Size XXL | Circumference under the knee: 43-48 cm (16.9"-18.9")

Height of the belt: 9 cm (3.5")

Additional product features
Breathable; cotton interior elements; durable construction; full range of adjustment; innovative and discreet design; latex-free; skin-friendly; recommended for rehabilitation use.

Technical specifications

• Code: OKD-10 DUAL
• Trade name: SUPPORT, LOWER-EXTREMITY
• Model: OKD-10 DUAL
• Device class: Class I medical device (Regulation EU 2017/745)
• Main materials: ActivePren™, AirRubber III™, PowerLift™, SoftComfort™
• Belt height: 9 cm (3.5")
• Waist range (single size): 60–145 cm
• Knee/thigh sizes (under-knee circumference): M 28–33 cm, L 33–38 cm, XL 38–43 cm, XXL 43–48 cm
• Functions: dynamic leg elevation during gait, spring-assisted knee flexion, foot lifting via dynamic rubber band
• Compatibility: universal carrying belt; can be used with standard knee braces or without patellar strap if required
