Orthopedic knee support MIDNIGHT

adultfoamadjustable

Description

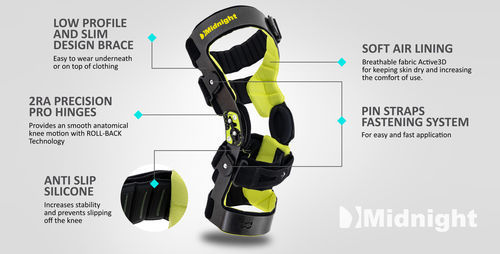

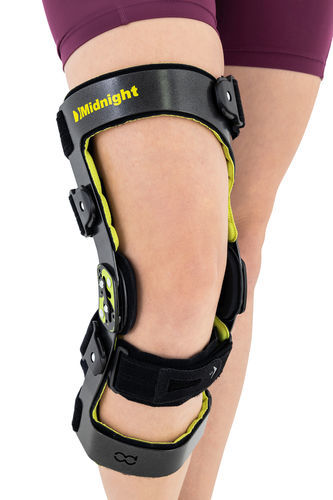

The MIDNIGHT functional knee orthosis by 4medic is a lightweight, anatomically shaped aluminium brace designed for professional stabilisation of ligament instabilities and various knee joint conditions. It protects against anterior translation typical of ACL injury and helps maintain alignment to prevent progression of varus/valgus deformities. The brace integrates thermoformed padding with adjustable length and skin-friendly silicone to reduce pressure points and prevent slippage.

Key functional features

• Circumferential Velcro straps that retain their set position during prolonged use
• Quick pin fastening system for simple and intuitive application
• 2RA Precision Pro hinges with ROLL-BACK technology for anatomical range of motion and smooth, physiological knee movement
• Flexion and extension limits adjustable via supplied Allen key (Flexion: 10/30/40/60/75/90°; Extension: 10/20/30/40°); option to lock in full physiological extension

Purpose of use

• Mild to severe ACL, MCL and LCL instability
• Rehabilitation after ACL reconstruction
• Mixed ligament injuries
• Knee hyperextension control

Sizes (how to measure)
Size | (A) Thigh circumference 15 cm above centre of patella | (B) Calf circumference 15 cm below centre of patella
S | 40 – 44 cm | 30 – 34 cm
M | 44 – 48 cm | 34 – 38 cm
L | 48 – 52 cm | 38 – 42 cm
XL | 52 – 56 cm | 42 – 46 cm

Other
Total product length (S–XL): 39 cm. Right and left specific design.

Materials and components
Active3D™ thermoformed closed-cell foamed fabric (waterproof, non-absorbent, easy to clean, thermoformable). 2RA Precision Pro aluminium splints with ROLL-BACK hinge technology. 3D relief supports (foam/EVA) for padding and protection.

Technical specifications

• Brand: 4medic
• Trade name: KNEE ORTHOSIS
• Model / Code: MIDNIGHT
• Medical device classification: Class I medical device
• Intended use: functional knee support for ACL, MCL, LCL instability, post-op rehabilitation, mixed ligament injuries, hyperextension control
• Frame: ultralight anatomically shaped aluminium
• Hinges: 2RA Precision Pro with ROLL-BACK technology (anatomical ROM, constant articular contact)
• ROM adjustment: flexion limits 10/30/40/60/75/90°; extension limits 10/20/30/40°; option to lock in full physiological extension
• Padding: thermoformed, adjustable length, skin-friendly silicone anti-slip
• Relief pads: 3D supports (foam/EVA)
• Fastening: circumferential Velcro straps and quick pin fastening system
• Accessories included: Allen key for hinge adjustment
• Material properties: Active3D™ waterproof, non-absorbent, easy to clean, thermoformable
• Product length (S–XL): 39 cm
• Right and left leg specific design
• Suitable also for osteoarthritis (deep relief), patellar arthritis, knee pain, swelling, stiffness and degenerative conditions
• Latex-free, waterproof; user manual and setup PDF available
