Orthopedic knee support AS-KX-04

adultanatomicalmalleable

Product description

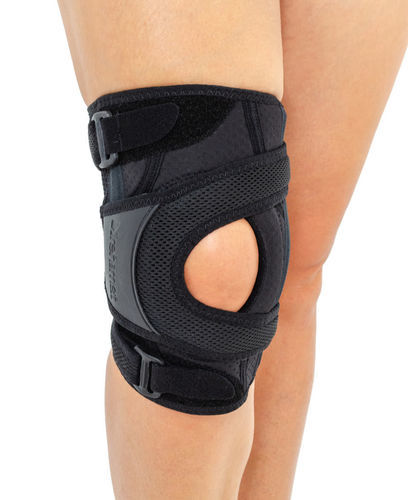

AS-KX-04 is a short knee orthosis designed for the conservative treatment of lateral patellar dislocation and patellofemoral joint disorders. The orthosis combines a perforated, non-elastic frontal panel and an openwork elastic posterior panel to provide targeted compression and breathability. Lateral patellar support is provided by a soft lateral pelotte and an adjustable silicone patella pelotte; two independent circumferential straps secure the orthosis above and below the knee. Two spiral lateral stays deliver precise stabilization during movement.

Purpose of use

• Lateral patellar dislocation (traumatic or congenital)
• Mild to moderate knee pain syndromes
• Patellar maltracking

Sizes
Size — Knee circumference — How to measure
M — 34-38 cm (13.4-15 in)
L — 38-42 cm (15-16.5 in)
XL — 42-46 cm (16.5-18.1 in)
Total length: 23 cm (9.05 in)
Left/right side available.

Technology / Materials

• ActivePren™ — three-layer active material (elastic jersey covers + neoprene foam core). Soft, flexible, non-knitted; effective for stabilizing orthoses.
• AirDistance III™ — breathable three-layer lamination: external self-gripping polyamide, comfort foam, internal 3D polyamide fabric. High air permeability, low moisture absorption, water resistant.
• ProSix™ — 3D elastic openwork fabric that conforms in multiple directions; external 3D layer for stabilization, duothermic spacer foam for ventilation and compression, breathable cotton skin-contact layer; Oeko-Tex Standard 100 certified.
• Spiral boning — thin coiled wire providing spring-like support, corrosion protected, washable in place, maintains shape memory.
• Patella silicone support — anatomical silicone pads in various shapes/hardnesses to stabilize or unload the patella.
• Patella stabilizers — relief foam stabilizers attached inside the orthosis with hook-and-loop elements.

Technical characteristics / specifications

• Brand: 4sport
• Code: AS-KX-04
• Trade name: KNEE ORTHOSIS
• Model: AS-KX-04
• Total length: 23 cm (9.05 in)
• Sides: Left / Right available
• Intended use: Patellofemoral joint disorders, including lateral patellar dislocation, patellar maltracking, mild to moderate knee pain
• Materials: ActivePren™, ProSix™, AirDistance III™
• Stiffenings: Two spiral lateral stays (spiral boning)
• Paddings: Adjustable silicone patella pelotte; additional patella stabilizers/foam pads
• Medical classification: Class I medical device (Regulation (EU) 2017/745)
• UNSPSC: 42241703
• UMDNS: 17874
