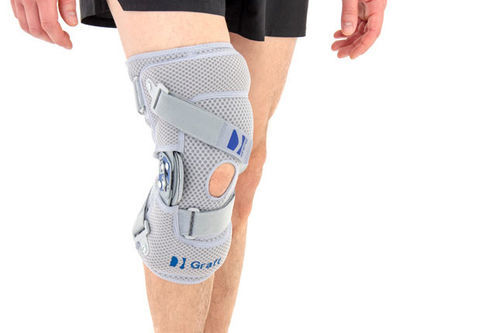

Orthopedic knee support GRAFT OA

orthopedic surgeryadultwith strap

Description
Single-splint knee orthosis designed to offload medial or lateral compartments and improve gait quality during rehabilitation. The 3-point system reduces pressure on injured articular cartilage, decreases pain receptor activation (maximum during midstance) and helps align articular surfaces to prevent valgus or varus deformity. Constructed from ProSix™ and PowerElastic™ fabrics for close fit, breathability and compression control.

Materials and key features
ProSix™: 3D elastic fabric with external stabilizing layer, duothermic spacer foam for air permeability and compression, cotton inner layer for skin comfort. PowerElastic™: thin spandex-based fabric offering compression, perspiration wicking and a soft touch. Both fabrics certified to Oeko-Tex Standard 100.

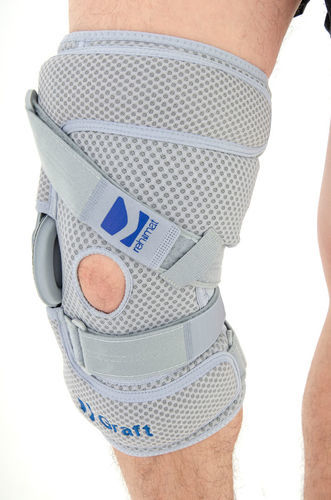

The brace includes a diagonal dynamic spiral strap that tightens on knee extension to resist valgus forces and limit axial rotation. An adjustable tibial strap enhances tibial capture and suspension. Integrated single-splint 2RP provides ROM adjustment. The device stabilizes the knee and is indicated for knee degeneration and MCL injuries with instability.

How the 3 Points System works
First support point: sleeve connected to the splint stabilizing the thigh on the stressed (medial or lateral) side.
Second support point: sleeve connected to the splint stabilizing the shin on the stressed side.
Third support point: spiral strap attached to the hinge and two axial straps above and below the joint (on femoral and tibial condyles) that reduce pressure on the opposite-side straps by approximately 50%. Key element: polycentric hinge allowing edge and rotational movement during flexion to maintain alignment with the knee axis.

Splint
Double-axis splint 2RP: orthopedic splint that follows anatomic knee motion during flexion. Reinforced polycentric splint with articulated mechanism and sliders on parabolic tracks. Arms made of high-quality aluminum alloy with durable powder coating; drop locks in acid-resistant steel with threaded holes. Splints are waterproof for use in wet/humid conditions. Includes hyperextension knee lock and adjustable joint flexion angles: free, 10°, 30°, 40°, 60°, 75°, 90°; extension angles: 10°, 20°, 30°, 40°. ROM set with hardened screws into threaded holes marked by angle. Each unit with 2RP splint includes an Allen key. Movable elements run on galvanized steel rivets with Teflon sliders for maintenance-free operation.

Purpose of use

• knee dislocation
• knee twist and sprain
• side instability of the knee joint
• knee ligament injuries – especially MCL and ACL injury
• knee ligaments reconstruction
• other orthopedic surgeries
• sports prophylaxis

Sizes
Size table (measurements):
Header: Size | (A) Thigh circumference 15 cm above patella center | (B) Calf circumference 15 cm below patella center
S: 40–44 cm (15.7"–17.3") | 30–34 cm (11.8"–13.4")
M: 44–48 cm (17.3"–18.9") | 34–38 cm (13.4"–15")
L: 48–52 cm (18.9"–20.5") | 38–42 cm (15"–16.5")
XL: 52–56 cm (20.5"–22") | 42–46 cm (16.5"–18.1")
XXL: 56–60 cm (22"–23.6") | 46–50 cm (18.1"–19.7")
Right and left specific. Total product length: 35 cm.

Technical specifications

• Brand: 4medic
• Denomination / Model: GRAFT OA
• Trade name: KNEE ORTHOSIS
• Materials: ProSix™ (3D elastic fabric with duothermic spacer foam and cotton inner layer), PowerElastic™ (spandex-based)
• Splint type: Double-axis splint 2RP (polycentric, reinforced, articulated mechanism)
• ROM settings: flexion angles: free, 10°, 30°, 40°, 60°, 75°, 90°; extension angles: 10°, 20°, 30°, 40°; adjustable with hardened screws and provided Allen key
• Includes hyperextension knee lock
• Dynamic diagonal spiral strap for valgus resistance and axial rotation control
• Adjustable tibial strap for improved tibial capture and suspension
• Paddings: 3D support pads to relieve rigid elements
• Total product length: 35 cm
• Right/Left specific design
• Medical classification: Class I medical device (in accordance with Regulation (EU) 2017/745)
• Recommended applications: MCL/ACL injuries, knee instability, knee degeneration, post-reconstruction and sports prophylaxis
• Splint properties: aluminum alloy arms with powder coating, acid-resistant steel drop locks, waterproof construction, maintenance-free Teflon sliders
