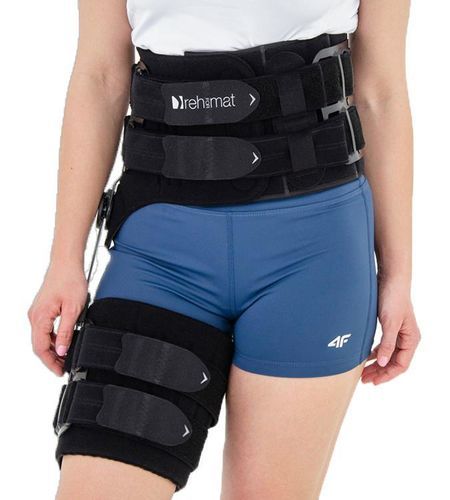

Hip orthosis AM-SB-12

thigh strapsplinthip brace

Description
The AM-SB-12 hip joint immobilization brace stabilizes and controls the pelvis and hip during upright standing and gait training. It includes a pelvic frame, adjustable thigh band and a lateral Splint 1RE with flexion/extension angle adjustment in 15° increments. The device supports correct pelvis positioning, helps prevent and treat contractures and enables controlled hip movement during early rehabilitation and postoperative recovery.

Properties

• Ensures correct hip positioning during upright standing and gait training
• Prevents development of contractures and assists their treatment
• Allows controlled adjustment of hip joint movement
• Fitting and use instructions provided by the treating physician

Purpose of use

• Early rehabilitation and gait training after hip surgery
• Rehabilitation of patients with hip joint contractures due to neurological or orthopaedic conditions

Sizes
Size: Universal
Waist circumference: min 75 cm – max 125 cm
Thigh circumference (5 cm below the groin): min 45 cm – max 70 cm
Available: left/right
Maximum user weight: up to 75 kg
Total length of product: min 53 cm (20.9") — max 67 cm (26.4")

Materials

• Active3D™: thermoformed, closed-cell fabric reducing pressure and abrasion from stays and splints; fully waterproof, sweat-resistant, easy to clean; external self-gripping layers; thermoforming enables anatomical shaping for final braces.
• ActiveDistance™: three-layer technical lamination with EVA foam and non-elastic polyamide; self-gripping, wide adjustment range, stabilizing and comfortable, waterproof.

Technological systems

• Press-slide System: length adjuster for splints allowing easy, safe extension/shortening; compact, lightweight, ergonomic; plastic reinforced with fiberglass; includes centimeter scale for repeatable settings.
• Splint 1RE: single-axis orthopedic splint with angle adjustment every 15°; hyperextension stops at -15° and -30°; strong lateral stabilization, low weight; tool-free angle setting with safety lock; aluminium alloy and plastic with carbon fibre components; patented.
• Paddings — 3D supports: relief supports of supporting foams or EVA connected to skin-friendly adhesive materials; anatomical shape to protect skin from direct contact with metal elements.

Characteristics / technical specifications

• Code: AM-SB-12
• Trade name: HIP JOINT IMMOBILIZATION BRACE WITH ADJUSTABLE FLEXION ANGLE – 1RE SPRINT
• Brand: 4medic
• Classification: Class I medical device (Regulation (EU) 2017/745)
• Size: Universal (Waist circumference: 75–125 cm; Thigh circumference: 45–70 cm)
• Maximum user weight: up to 75 kg
• Total length: min 53 cm (20.9") — max 67 cm (26.4")
• Available: left/right
• Materials: Active3D™, ActiveDistance™
