Orthopedic knee support OA PRIME

adultfoamwith strap

Product overview
Functional off-loading knee orthosis OA PRIME is a Class I medical device designed to correct knee alignment and reduce pain in degenerative conditions such as osteoarthritis. It provides stabilization in sagittal, frontal and transverse planes and helps improve gait by decreasing load on the affected compartment of the knee.

Product description
The OA PRIME features a lightweight, low-profile aluminum frame covered with skin-friendly thermoformed Active3D fabric. Two cooperating medial and lateral hinges act during extension to increase joint space medially and shift the joint alignment laterally, producing controlled external rotation of the foot and reducing joint pressure. The orthosis includes anatomically shaped 3D relief pads for individualized fit and silicone-covered straps to prevent slipping. Available in right and left versions.

Key features

• Low-profile lightweight aluminum frame
• Active3D thermoformed, waterproof cover
• Medial and lateral cooperating hinges for off-loading and alignment
• Anatomical 3D relief pads and silicone-covered straps for secure fit

Materials / Technology
Active3D thermoformed fabric is a foamed, closed-cell material that reduces pressure and abrasion from rigid elements, is waterproof, does not absorb sweat and is easy to clean. 3D relief supports are anatomically shaped foam/EVA pads that off-load metal elements and increase patient comfort.

Purpose of use

• Knee deformities
• Knee osteoarthrosis (OA)
• Knee inflammation
• Rheumatoid arthritis (RA)
• Valgus knee
• Knee injuries

Sizes (how to measure)
S — (A) Thigh circumference 15 cm above patella center: 40–44 cm (15.7–17.3 in); (B) Calf circumference 15 cm below patella center: 30–34 cm (11.8–13.4 in); Total length: 35 cm
M — (A) 44–48 cm (17.3–18.9 in); (B) 34–38 cm (13.4–15.0 in); Total length: 35 cm
L — (A) 48–52 cm (18.9–20.5 in); (B) 38–42 cm (15.0–16.5 in); Total length: 35 cm
XL — (A) 52–56 cm (20.5–22.0 in); (B) 42–46 cm (16.5–18.1 in); Total length: 35 cm

Gallery / Visuals

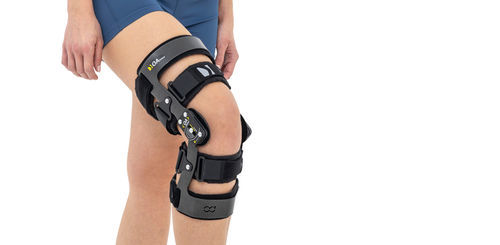

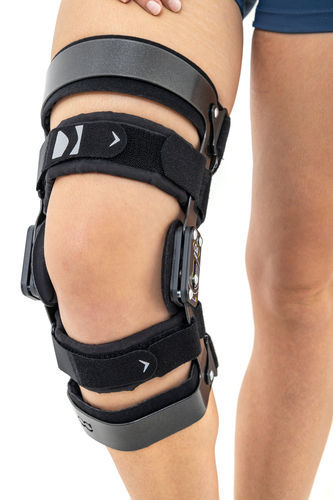

Product presented with multiple photographic views showing the aluminum frame, medial and lateral hinges, 3D pads and the strap fastening system.

Characteristics / Technical specifications

• Code: OA PRIME
• Trade name: KNEE ORTHOSIS
• Model: OA PRIME
• Brand: 4medic
• UMDNS Code: 17874
• Class: Class I medical device (Regulation (EU) 2017/745)
• Frame: low-profile lightweight aluminum
• Cover material: Active3D thermoformed fabric (waterproof, closed-cell, easy to clean)
• Paddings: 3D relief supports (foam / EVA)
• Hinges: medial and lateral cooperating hinges for off-loading and alignment
• Straps: silicone-covered to prevent slipping
• Available: right and left versions
• Total length (S–XL): 35 cm
