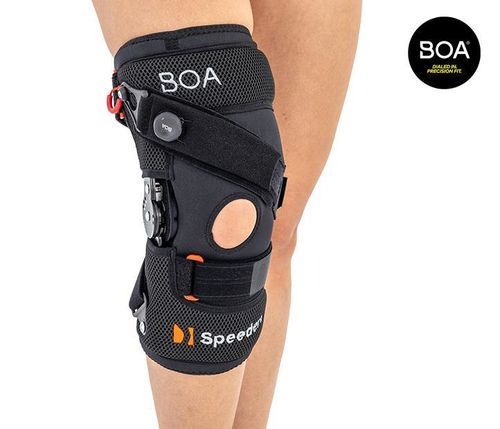

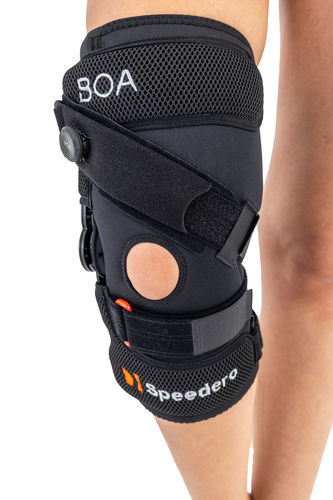

Orthopedic knee support SPEEDERO/CCA

adultwith strapadjustable

Product overview
SPEEDERO/CCA is a single upright knee brace designed to provide valgus or varus realignment and three-point leverage to reduce compartmental contact stress in unicompartmental knee osteoarthritis. The orthosis combines a low-profile soft sleeve with an aluminum knee frame, a 1RP single-axis hinge and an optional BOA® Fit System for precise fitting.

Product description
The SPEEDERO single upright brace reduces pain and improves joint loading in patients with medial or lateral compartment knee osteoarthritis. It is recommended for knee degeneration, MCL injuries and instability. The brace is lightweight, comfortable and suitable for use during daily activities, sports protection and post‑operative care. Adjustment of alignment and range of motion helps delay or complement surgical interventions where appropriate.

Materials and technologies

• AeroSpace™: distance elastic 3D knitted fabric (polyester/spandex) providing compression, fit, breathability and soft 3D relief for mounted elements.
• ActiveSpace™: non-elastic spacer polyamide 3D lamination with high ventilation, minimal moisture absorption and improved stabilization.
• BOA® Fit System: micro-adjustable dial and lace system for fast, precise and repeatable fitting.
• Single axis splint 1RP: hardened-steel arms with powder coating, hyperextension lock, ROM stops at 30°, 50°, 70° and extension free or 20°; Teflon sliders and threaded angle markings for maintenance-free adjustment.

Purpose of use

• Osteoarthritis of the knee (unicompartmental OA)
• Knee dislocation
• Knee strain or sprain
• Knee instability
• Collateral and cruciate ligament injuries (MCL, ACL)
• Knee ligament reconstruction
• Post‑operative protection after knee surgeries
• Protection during sport

Sizes
Size table (measurements):
Size | (A) Thigh circumference 15 cm above center of patella | (B) Calf circumference 15 cm below center of patella
S: 40–44 cm | 30–34 cm
M: 44–48 cm | 34–38 cm
L: 48–52 cm | 38–42 cm
XL: 52–56 cm | 42–46 cm
2XL: 56–60 cm | 46–50 cm
Right and left specific versions available. Total product length: 35 cm.

How to adjust
The brace can incorporate the BOA® Fit System for fast micro-adjustment of fit. ROM and locks on the 1RP splint are adjusted with the supplied Allen key using threaded holes marked with angle values. When dual splints are used, match adjustments on both sides to ensure correct alignment and maintain warranty.

Caractéristiques / spécifications techniques

• Brand: 4sport
• Code UMDNS: 17874
• Trade / model name: SPEEDERO/CCA
• Product type: single upright knee brace with hinge and strap (OA orthosis)
• Medical classification: Class I medical device
• Materials: AeroSpace™ (3D knitted polyester/spandex), ActiveSpace™ (polyamide 3D lamination), aluminum frame
• Frame: Aluminum knee frame with 1RP single-axis hinge
• Splint: Single axis splint 1RP with hyperextension lock; flexion stops: 30°, 50°, 70°; extension: free or 20°
• Fitting system: BOA® Fit System (micro-adjustable dial and laces)
• Function: valgus/varus realigning brace, 3-point leverage to reduce compartment pressure
• Sizing: S, M, L, XL, 2XL (thigh and calf circumferences as above)
• Total product length: 35 cm
• Right and left specific versions available
