Ankle and foot orthosis OSS-OS-02/CCA

AFOLS

FOOT-TOP

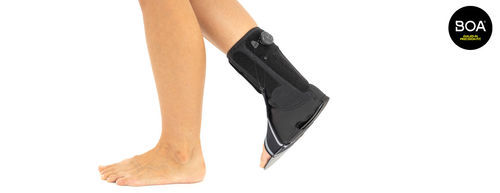

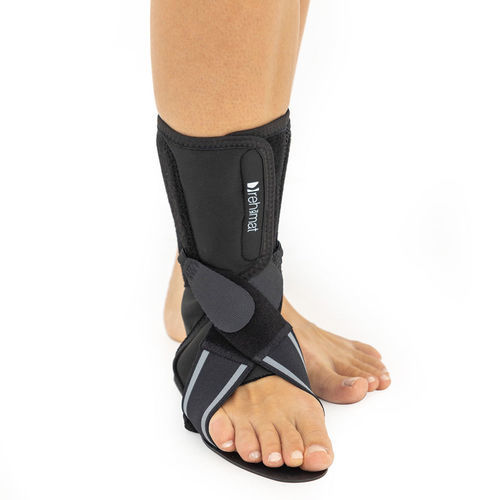

FOOT-TOP (OSS-OS-02) is a lightweight active ankle-foot orthosis (AFO) with a semi-rigid ABS insole, designed to assist patients with foot drop and improve gait dynamics. The device is discreet under clothing and uses active straps to correct foot positioning.

Key features and materials
AeroSpace™ fabric: distance elastic 3D knitted fabric, very low weight, high flexibility, large openwork structure allowing sweat drainage and air flow; provides proper compression and fit and reduces muscle vibrations.
ActiveSpace™: spacer polyamide 3D lamination with high skin ventilation; non-elastic for improved stabilization; waterproof and lightweight.
AirRubber III™: unidirectional elastic rubber braids that stretch lengthwise (not width), improving compression and providing gentle skin massage; breathable between braids.
ABS sole insole: semi-rigid orthosis insert made of ABS available in many sizes and left/right versions; lifts the foot over entire sole surface. Profiled back shell made of polyethylene stiffens the orthosis rear part to prevent collar slippage.

Description
Foot drop is a neurological condition causing inability to dorsiflex the forefoot. Causes include peroneal nerve injury, spinal or cerebral disorders, and muscular diseases. FOOT-TOP (OSS-OS-02) incorporates a shaped ABS insert that lifts the forefoot. The orthosis combines lightweight, elastic materials and structural elements to restore a more physiological gait pattern and limit compensatory mechanisms. Active straps correct inversion, aid calf muscle pump action to increase circulation, and facilitate activation of iliopsoas and gluteal muscles during walking.

Purpose of use

• Foot extensors weakness
• Stroke or intracranial bleeding
• Multiple sclerosis (MS)
• Toes or partial foot amputation

Adjusting system
Equipped with BOA® Fit System for fast, micro-adjustable, precision fit (dial and laces).

Sizes (tables)
Table 1 - Heel circumference (How to measure: heel circumference)
Size S - 27-30 cm (10.6"-11.8")
Size M - 30.5-33 cm (12"-13")
Size L - 33.5-36 cm (13.2"-14.2")
Size XL - 36.5-39 cm (14.4"-15.4")

Table 2 - Shoe size / Foot length (How to measure: foot length)
Shoe size 36 - Foot length 23 cm (9")
Shoe size 37 - Foot length 24 cm (9.4")
Shoe size 38 - Foot length 24.5 cm (9.6")
Shoe size 39 - Foot length 25 cm (9.8")
Shoe size 40 - Foot length 25.5 cm (10")
Shoe size 41 - Foot length 26.5 cm (10.4")
Shoe size 42 - Foot length 27.5 cm (10.8")
Shoe size 43 - Foot length 28 cm (11")
Shoe size 44 - Foot length 28.5 cm (11.2")
Shoe size 45 - Foot length 29 cm (11.4")
ANY SIZE COMBINATIONS FROM TABLES 1 AND 2 ARE POSSIBLE

Table 3 - Total height of the product
Size S - 24 cm (9.4")
Size M - 25 cm (9.8")
Size L - 26 cm (10.2")
Size XL - 27 cm (10.6")

Setting up / Replacement
Setting up instructions and a device-specific PDF manual are available for the CCA system. Replacement items: insert (insole) available separately. Left/right side available.

Technology & stiffenings
BOA® Fit System integrated for precision fit.
ABS sole insole for full-surface lifting of the foot; profiled polyethylene back shell for rear stiffening.
Flat orthopedic stays available as stiffening option.

Technical characteristics / specifications

• Brand: 4medic
• Code: OSS-OS-02/CCA
• Trade name: FOOT ORTHOSIS / FOOT-TOP
• Model: OSS-OS-02/CCA
• Medical device classification: Class I medical device
• Indications: foot drop, foot extensors weakness, stroke sequelae, MS, partial foot amputation
• Main materials: AeroSpace™, ActiveSpace™, AirRubber III™
• Insole material: ABS (semi-rigid sole insole)
• Technological systems: BOA® Fit System
• Available sizes: S, M, L, XL (heel circumferences 27-39 cm) and shoe sizes 36-45; combination sizing possible
• Total product height by size: S 24 cm, M 25 cm, L 26 cm, XL 27 cm
• Left/right versions available
• Modular design: soft part and insole can be ordered separately
• Replacement parts: insert (insole)
