Orthopedic knee support AM-OSK-Z/1R-01

surgicaladultfoam

Description

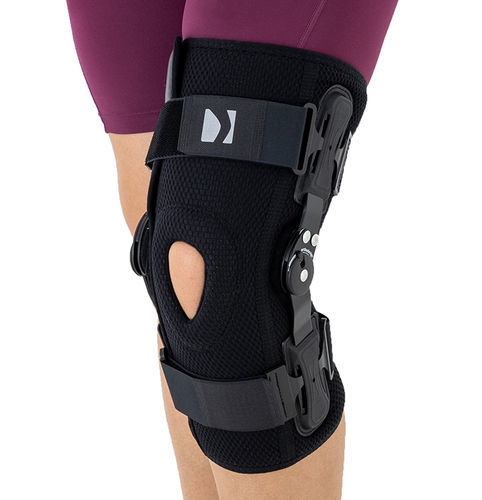

Knee brace is made of perforated foam coated with lining fabric. It holds two independent supported sets of Velcro tapes. The device is equipped with two side-shaped splints made of carbon fibres and consists of a special drop lock allowing range-of-motion (ROM) adjustment every 15°. This precise adjustment facilitates the rehabilitation process. The system of splints in the open knee brace is arranged in the shape of the letter X, which allows it to adhere perfectly to the limb and enables precise stabilization of the joint. Internal perforation allows the skin to breathe and reduces overheating. The anatomic patella support made of foam with antimycotic properties provides maximum stabilization of the patellofemoral joint.

Purpose of use

• knee dislocation
• knee twist and sprain
• side instability of the knee joint
• knee ligaments LCL, MCL and ACL injuries
• knee ligaments reconstruction
• other orthopedic surgeries

It is possible to use a thinner pad under the drop lock.

Sizes
Size | Knee circumference | How to measure
S | 30-34 cm (11,8"-13,4")
M | 34-38 cm (13,6"-15")
L | 38-42 cm (15,2"-16,5")
XL | 42-46 cm (16,7"-18,1")
2XL | 46-50 cm (18,3"-19,7")
3XL | 50-55 cm (19,9"-21,7")

Total length of the product: 36 cm (14,2")

Materials and Technology
ProSix™: innovative 3D fabric, elastic in all directions, fitting the limb precisely. External layer is 3D material providing excellent stabilization; inside is duothermic spacer foam providing high air permeability and compression; skin-contact layer is breathable cotton. ProSix™ is skin-friendly, neutral and has Oeko-Tex Standard 100 certificate.

EASY FIT Solution: patented system to enhance product fit to body curves; consists of universal inserts for attaching clips with elastic elements, enabling angular movement and circumferential guidance of straps; allows combination of rigid components with elastic straps for individualized stabilization.

Splint 1R Orthodesign: orthopedic splint with flexion and extension angle adjustment every 15 degrees. Adjustment uses inserted steel pins removable with a magnet; ratchet locking ring prevents spontaneous angle changes. In knee braces the splints have a tibial offset for more precise fit and ROM regulation. Splints can be slightly bent for individual adaptation in some cases.

Paddings / 3D supports: independent elements made of supporting foams or EVA foam, combined with skin-friendly materials and gripper layers; anatomical shape to relieve metal elements (splints, stays, drop locks) and prevent direct contact with skin.

Patella stabilizers: relief stabilizers made in 2D technology from relieving foams with skin-friendly fabric and gripper attachment; anatomical shape and appropriate hardness ensure therapeutic effect.

Characteristics / Specifications techniques

• Brand: 4medic
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: AM-OSK-Z/1R-01
• Product type: Knee brace with 15° ROM adjustment
• Code UNSPSC: 42241703
• Code UMDNS: 18029
• Class: Class I medical device (Regulation (EU) 2017/745)
• Total length: 36 cm (14,2")
• Main materials: perforated foam coated with lining fabric; carbon fibre side splints; ProSix™ 3D fabric; cotton skin-contact layer
• Patella support: anatomic patella donut made of antimycotic foam
• ROM adjustment: special drop lock with setting every 15°
• Splint features: magnetic removable steel pins for adjustment, ratchet locking ring, tibial offset for precise fit
• Breathability: internal perforation for skin ventilation
• Certifications/attributes: Oeko-Tex Standard 100 (material), latex-free, skin-friendly, double-sided
• Suitable for: LCL, MCL, ACL injuries, knee dislocation, twists, sprains, ligament reconstruction and other orthopedic surgeries
