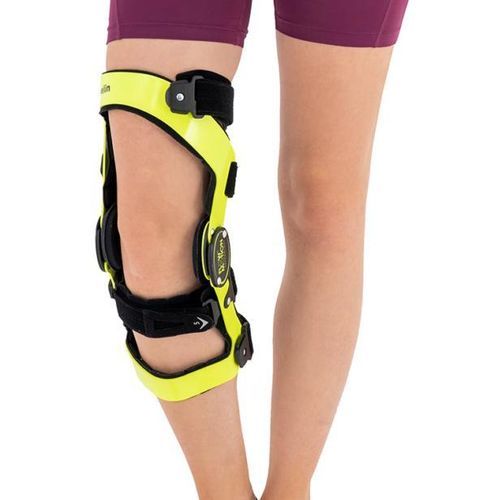

Orthopedic knee support JAVELIN

adultwith strapanatomical

Product overview
JAVELIN – functional knee orthosis with FLOW MOTION Technology. The JAVELIN provides targeted support to the knee joint after injury and helps limit further damage. It protects ligaments, tendons, joint capsule and meniscus in cases of sprain, dislocation or advanced ligament lesions. The orthosis is built on a lightweight anatomically shaped aluminium frame for maximal stabilization with minimal weight. Thermoformed padding with adjustable length reduces pressure on bony prominences and is covered with skin‑friendly silicone to prevent migration. The anterior–posterior frame design is particularly suited to protect against anterior translation (e.g. ACL injuries). Wrap‑around Velcro straps remain secure during prolonged use and a quick pin fastening system ensures simple, intuitive application.

Main features
The integrated 4‑axis hinge reproduces physiological knee motion using clock inserts that move relative to one another based on the four‑bar linkage principle, maintaining consistent contact between articular surfaces across the physiological range of motion. Pressure‑relieving thermoformed cushioning with anti‑migration properties and optional soft attachment pads enable precise individualized fitting. Circumferential straps with a memory system and quick‑release buckles allow rapid application and removal. The orthosis is fully water‑resistant and suitable for bathing and water sports environments.

Purpose of use

• Mild or severe ACL, MCL and LCL instability
• Rehabilitation after ACL reconstruction
• Mixed ligament injuries
• Knee hyperextension

Sizes
Size | (A) Thigh circumference 15 cm above center of patella | (B) Calf circumference 15 cm below center of patella | Total length of the product
S | 40–44 cm | 30–34 cm | S–XL: 39 cm
M | 44–48 cm | 34–38 cm |
L | 48–52 cm | 38–42 cm |
XL | 52–56 cm | 42–46 cm |
Right and left specific.

Technology & materials
Active3D™ thermoformed fabric: closed‑cell foamed material that reduces pressure and abrasions from orthopaedic stays and aluminium splints; fully waterproof, does not absorb sweat and is easy to clean. FLOW MOTION Technology: advanced aluminium splints with an innovative 4‑axis hinge that replicates anatomical knee movement, maintains constant contact between thigh and shin articular surfaces across the physiological range and supports natural rotational movements. 3D relief supports (pads) made of supportive foam or EVA relieve rigid elements of the orthosis; skin‑friendly materials and adhesive‑function layers ensure anatomical comfort.

Additional product notes
Anterior‑posterior frame design suitable for advanced ligament lesions; wrap‑around Velcro straps and quick pin fastening for stable, easy fitting; improves proprioception and limits unwanted lateral movement to protect injured knees and support healing.

Technical specifications

• Model: JAVELIN
• Trade name: KNEE ORTHOSIS
• Manufacturer: REH4MAT Sp. z o.o.
• Medical device classification: Class I (Regulation (EU) 2017/745)
• Frame: Lightweight anatomically shaped aluminium
• Hinge: FLOW MOTION Technology, 4‑axis articulating mechanism, four‑bar linkage principle
• Padding: Thermoformed padding with skin‑friendly silicone cover; adjustable length
• Pad supports: 3D relief supports made of foam/EVA
• Straps & fastenings: Wrap‑around Velcro straps with memory system; quick pin fastening; quick‑release buckles
• Water resistance: Fully water‑resistant (suitable for bathing and water sports)
• Purpose: ACL, MCL, LCL instability; post‑ACL reconstruction; mixed ligament injuries; knee hyperextension
• Sizes: S, M, L, XL (see sizes block for circumferences)
• Total length (S–XL): 39 cm
