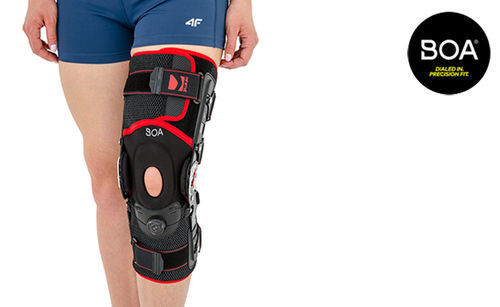

Orthopedic surgery knee support AM-OSK-ZL/2RA-ACL

surgicaladultadjustable

Product overview

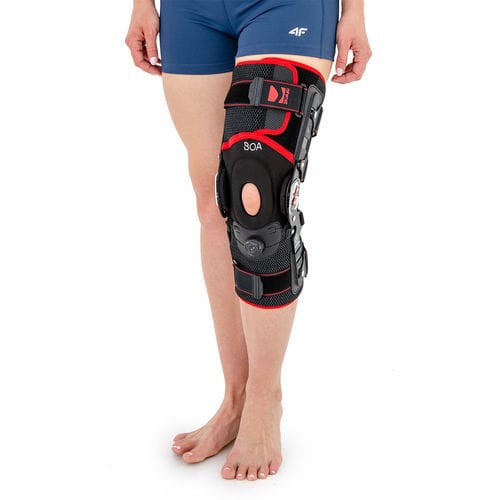

Long light knee brace (closed construction) designed as a professional medical device to improve gait quality and support rehabilitation of the locomotor system. Stabilizes the knee joint and supports muscle insertions. Constructed with independent sets of Velcro straps, dynamic ACL support and 2-axial anatomic side splints 2RA-ACL equipped with a 2RA drop lock for ROM adjustment. The brace incorporates the ACL Precision System to reduce excessive anterior translation (anterior drawer) in cases of ACL injury.

Key features

• Open lower limb brace with ROM adjustment and ACL Power system.
• 2-axial anatomic side splints 2RA with 2RA drop lock allowing ROM adjustment (flexion up to 75°, extension up to 15°, immobilization at 0°).
• ACL Precision System — innovative anterior cruciate ligament support to minimize anterior drawer syndrome.
• Independent Velcro straps and dynamic ACL support.
• BOA® Fit System integration for micro-adjustable precision fit and lifetime-guaranteed dial and laces.
• Anatomic patella donut and patella stabilizers for additional support.
• Universal splints usable on both left and right legs.
• Class I medical device.

Purpose of use

• ACL injuries (operative or non-operative treatment)
• Injuries of knee ligaments: LCL, MCL and PCL
• Knee ligament reconstruction and post-operative support
• Knee dislocation
• Knee twist and sprain
• Side instability of the knee joint
• Other orthopaedic surgeries requiring knee stabilization

Sizes
Size | (A) Thigh circumference 15 cm above the center of the patella | (B) Calf circumference 15 cm below the center of the patella
S | 40-44 cm (15,7"-17,3") | 30-34 cm (11,8"-13,4")
M | 44-48 cm (17,5"-18,9") | 34-38 cm (13,6"-15")
L | 48-52 cm (19,1"-20,5") | 38-42 cm (15,2"-16,5")
XL | 52-56 cm (20,7"-22") | 42-46 cm (16,7"-18,1")
XXL | 56-60 cm (22,2"-23,6") | 46-50 cm (18,3"-19,7")
Total length of product: 45 cm (17,7")

Materials

• ActiveSpace™: spacer, polyamide 3D lamination with high skin ventilation; two-layer construction with polyamide braids; non-elastic to improve stabilization; waterproof; minimal moisture absorption.
• AeroSpace™: distance elastic 3D knitted fabric (polyester yarn + spandex) providing low weight, high flexibility, openwork structure for sweat drainage and comfort; relieves rigid elements mounted on the product.

Technological systems

• BOA® Fit System: dial-and-lace micro-adjustable closure integrated for fast, precise fit; engineered for durable, field-tested performance.
• System 2RA-ACL Precision: polycentric stabilizing splints with ROM adjustment and ACL support; coupling mechanism runs on parabolic tracks to keep hinges in knee bending axis; overextension blockage 15°, flexion blockage 75°, straight position immobilization; flexion/extension angle adjustable via special screws (Allan key supplied).

Paddings and patella supports

• 3D relief supports made of supporting foams or EVA foam connected with skin-friendly materials to relieve rigid elements (splints, stays, underwires, drop locks).
• Patella stabilizers in 2D technology: relieving foams with skin-friendly fabric and gripper for attachment inside the orthosis; anatomically shaped for therapeutic effect.

Additional notes

• It is possible to use a thinner pad under the drop lock.
• Splints are universal (suitable for both legs).
• Intended for long-term use in patients with complicated knee instability (partial or complete ACL rupture), pre- or post-operative use, and for people who may not undergo reconstructive surgery.

Technical specifications

• Code: ACL CCA
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: AM-OSK-ZL/2RA-ACL
• Total product length: 45 cm (17,7")
• ROM adjustment: flexion up to 75°, extension up to 15°, immobilization at 0°
• Splint system: 2RA-ACL polycentric splints with Allan key adjustment
• Materials: ActiveSpace™, AeroSpace™
• Closure systems: Velcro straps and BOA® Fit System
• Medical classification: Class I medical device (per EU Regulation 2017/745)
