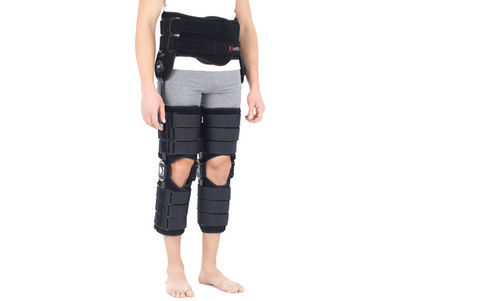

Positioning knee support OKD-14 DUAL

orthopedic surgeryfor hip surgerysurgical

Overview
The OKD-14 DUAL is a knee and hip orthosis with ROM (range of motion) adjustment designed for patients with lower limb stabilization problems, flaccid paralysis and paresis, and other conditions causing poor myotonus and muscle weakness. It combines a soft hip part and a long knee brace and is intended to support and stabilize the hip and knee joints, provide post-op control, assist in walk therapy and prevent contractures.

Product description
The orthosis comprises a soft hip part (circumferentially adjustable) and a long knee brace made of ActiveDistance and ActiveDistance II materials. The hip part includes soft lateral support, circumferential straps and a splint with length adjustment. The hip brace features a drop-lock with ROM adjustment in every 15 degrees. The 1RE splint is a single-axis splint with hyperextension control allowing adjustment of -15° and -30° of extension. Lightweight splints are made of high-quality aluminium with carbon fibres and provide lateral stabilization and low weight. The internal side of the brace is covered by a skin-friendly cotton layer with Oeko-Tex Standard 100 certification.

Features

• Hip part: circumferential adjustment, soft lateral support, circumferential straps, splint length adjustment
• ROM control: drop-lock adjustable in 15° increments (1RE); splint 2R allows 20° increments
• Splints: 1RE (single-axis with hyperextension control -15°/-30°) and 2R (double-axis polycentric with rack gearing)
• Knee brace: six circumferential straps; splint options 2R (polycentric) or 1RE (single-axis)
• Materials: ActiveDistance and ActiveDistance II (non-elastic, self-gripping fabrics, 3-layer constructions), inner cotton terry layer)
• Skin-friendly, breathable, latex-free; designed to avoid bedsores and skin lesions
• Standard configuration: one-sided orthosis; option available for double (right + left) orthosis

Indications (one-sided OKD-14)

• Severe knee and hip instability and degeneration disorders
• Lower limb paresis — in walk therapy
• After severe knee and hip surgeries where immobilization is necessary
• Prevention and treatment of contractures
• Posture control in rehabilitation

Indications (double OKD-14)

• Flaccid paralysis
• Myelocystocele
• Spinal muscular atrophy
• Muscular dystrophy of lower limbs

Sizes
Waist
Single size: min 75 cm – max 125 cm (min 29,5" – max 49,2")

Measurement table
Size | (A) Thigh circumference 15 cm above the patella | (B) Calf circumference 15 cm below the patella | (C) Distance between knee joint interstice and groin | How to take measure
S | min 40 cm – max 75 cm (min 15,7" – 29,5") | min 30 cm – max 55 cm (min 11,8" – max 21,6") | 27 cm – 37 cm (10,6" – 14,5") | (see product measurement image)
M | | | 33 cm – 43 cm (13" – 16,9") | (see product measurement image)
L | | | 36 cm – 46 cm (14,2" – 18,1") | (see product measurement image)

Maximum user weight
Maximum user weight up to 75 kg.

Materials and technology
ActiveDistance II™: active 3-layered fabric made of non-elastic polyamide self-gripping layer, comfort foam and cotton terry; skin-drying layer; Oeko-Tex Standard 100 certified; self-gripping for precise fit.
ActiveDistance™: technical off-loading lamination with EVA foam double-sided laminated with non-elastic polyamide; non-elastic for stabilization; waterproof and comfortable.
Splint 1RE: single-axis orthopedic splint with ROM adjustment every 15° and hyperextension adjustment (-15° and -30°); lateral stabilization; low weight; patented design.
Splint 2R: double-axis polycentric splint with rack gear reflecting anatomic knee movement; ROM set in 20° increments using pins; standard splint length 390 mm; lateral stabilization available for longer splints; patented design.

Accessories / Recommended products
Protective sleeve for the brace (product to be used with the orthosis).

Caractéristiques / spécifications techniques

• Brand: 4medic
• Code (product code on page): OKD-14 DUAL
• Trade name: SUPPORT, LOWER-EXTREMITY
• Model designation: OKD-14 DUAL
• Class: Class I medical device (Regulation EU 2017/745)
• Main materials: ActiveDistance™, ActiveDistance II™; inner cotton terry (Oeko-Tex Standard 100)
• Splint materials: aluminium alloy with carbon fibre elements
• Splint types: 1RE (single-axis, 15° increments, hyperextension control), 2R (polycentric, 20° increments)
• ROM adjustment increments: 15° (1RE), 20° (2R)
• Hyperextension control: -15° and -30° (1RE)
• Knee brace straps: six circumferential straps
• Configurations: one-sided standard; double orthosis available
• Maximum user weight: up to 75 kg
• Features: breathable, skin-friendly, latex-free, recommended by specialists
