Orthopedic knee support ATOM ACL

adultanatomicaladjustable

Overview

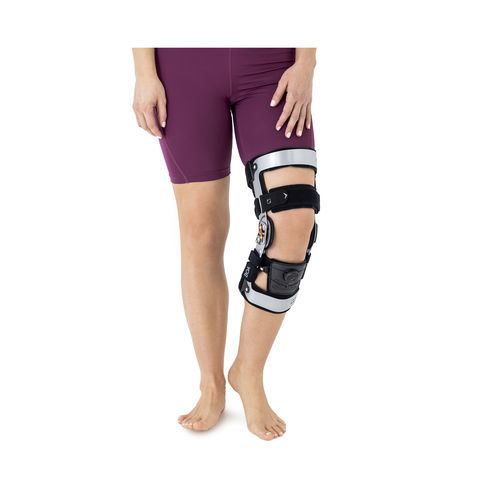

Functional knee brace ATOM ACL/CCA is designed for anterior cruciate ligament (ACL) protection. It features an innovative ACL pad with BOA® Fit System which reduces anterior drawer syndrome and places the tibia posterior relative to the thigh. The brace provides 4-point knee support and is dedicated to active athletes and sport amateurs who need maximum knee stabilization and protection.

Product description
The frame is made of lightweight aluminium 6061 T6 (aviation-grade) with a powder dye finish making it waterproof and resistant to sweat. Internal soft padding is made of comfort thermoformed foam Active3D™ to reduce pressure on bony prominences and increase comfort. Padding is covered with anti-slipping silicone to prevent the brace from sliding down. The ACL pad with BOA® Fit System provides full adjustment and posterior tibial positioning. The brace includes anatomic 2RA double-axis splints and an innovative 2RA drop lock that ensures smooth range of motion reflecting natural knee movement. Both aluminium frame and padding are fully waterproof; the brace may be used in the shower without removing it.

Features

• Innovative ACL pad with BOA® Fit System for precision adjustment
• 4-Points knee support to reduce anterior tibial translation
• Light aluminium 6061 T6 frame, powder coated (waterproof)
• Active3D™ thermoformed foam padding for comfort and pressure relief
• Anti-slipping silicone on padding to prevent migration
• 2RA double-axis anatomic splints with angle adjustment (hyperextension block and flexion/extension stops)
• Waterproof design (frame and padding)

Purpose of use

• Mild or severe ACL, PCL, MCL and LCL instability
• Rehabilitation after ACL or PCL reconstruction
• Mixed injuries ACL/PCL
• Knee hyperextension

Sizes

• S — (A) Thigh circumference 15 cm above center of patella: 40–44 cm; (B) Calf circumference 15 cm below center of patella: 30–34 cm; see measuring diagram
• M — (A) Thigh circumference 15 cm above center of patella: 44–48 cm; (B) Calf circumference 15 cm below center of patella: 34–38 cm; see measuring diagram
• L — (A) Thigh circumference 15 cm above center of patella: 48–52 cm; (B) Calf circumference 15 cm below center of patella: 38–42 cm; see measuring diagram
• XL — (A) Thigh circumference 15 cm above center of patella: 52–56 cm; (B) Calf circumference 15 cm below center of patella: 42–46 cm; see measuring diagram
• Right and left specific. Total product length (S–XL): 38 cm

How to adjust
BOA® Fit System provides micro-adjustable, fast and precise fit. The BOA® dial and laces enable smooth tightening and release to achieve the desired posterior tibial positioning and secure brace fit.

Replacement items

• Set of 3D covers
• Set of 3D covers and circumferential strips

Technical specifications

• Brand: 4medic
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: ATOM ACL
• Code UMDNS: 18029
• Frame material: aluminium 6061 T6, powder coated (waterproof)
• Padding: Active3D™ thermoformed foam, waterproof, easy to clean
• Padding finishing: anti-slipping silicone
• Fit system: BOA® Fit System (micro-adjustable dial and laces)
• Splints: 2RA Precision double-axis anatomic splints; adjustable flexion/extension stops and hyperextension block
• Support: 4-point knee support
• Use: right and left specific; suitable for athletes and rehabilitation
• Total length (S–XL): 38 cm
• Replacement parts available: 3D covers; 3D covers with circumferential strips
• Classification: Class I medical device (Regulation (EU) 2017/745)
