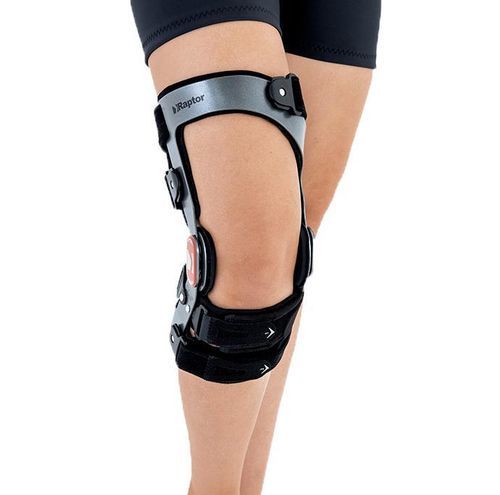

Orthopedic knee support RAPTOR/2 SHORT

adultfoamdouble

Overview
RAPTOR/2 SHORT is a professional knee support designed for skiing and snowboarding use. The shortened lower frame and anatomic front-rear construction allow compatibility with ski boots while providing frontal and sagittal joint stabilization. The 4-point dynamic leverage system reduces load on knee ligaments and lowers the risk of aggravating existing injuries.

Product description
The brace uses an aircraft-grade aluminium 6061 T6 frame with a powder coating for moisture resistance. The shell is combined with Active3D™ thermoformed closed-cell waterproof fabric. The device includes five straps, anatomical 3D cushions and internal EVA foam lining covered with cotton and terry to limit migration and reduce skin irritation. The product is waterproof and has been tested in brine.

Key features

• Lightweight aluminium 6061 T6 frame with powder coating (moisture and sweat resistant)
• 4-point dynamic leverage system for frontal and sagittal stabilization
• Active3D™ thermoformed closed-cell waterproof fabric with external self-gripping layers
• Double-axis polycentric splints (Splint 2) with rack and pinion and silicone insert to follow anatomic knee motion
• Five straps and anatomical 3D cushions to reduce migration and distribute pressure
• Internal comfort EVA foam lining covered with cotton and terry to minimize skin irritation
• Right and left specific design

Intended activities / Use
SPORT, HOME, WORK, HOBBY

Indications

• Knee sprain/strain
• Knee dislocation
• MCL, ACL, LCL, PCL injuries
• Meniscus injury
• Knee instability

Sizes (how to measure)
Header: Size — (A) Thigh circumference 15 cm above center of patella — (B) Calf circumference 15 cm below center of patella
S — Thigh 40–44 cm — Calf 30–34 cm
M — Thigh 44–48 cm — Calf 34–38 cm
L — Thigh 48–52 cm — Calf 38–42 cm
XL — Thigh 52–56 cm — Calf 42–46 cm
Total length of the product: 36 cm

Replacement items
– a set of 3D covers — a set of 3D covers and circumferential strips

Materials & Technology

• Active3D™ — thermoformed, closed-cell waterproof fabric that does not absorb sweat and is easy to clean; may be shaped to functional goals of the brace
• Splint 2 — double-axis polycentric splints with rack and pinion, made of high quality aluminium alloy with protective sanded cover and shaped silicone insert
• 3D relief supports — anatomical pads made of supporting foams or EVA foam combined with skin-friendly and self-gripping materials

Characteristics / Spécifications techniques

• Brand: 4sport
• Code: RAPTOR/2 SHORT
• Trade name: LOWER-EXTREMITY SUPPORT
• Model: RAPTOR/2 SHORT
• Total length: 36 cm
• Frame material: aluminium 6061 T6 (aircraft-grade), powder-coated
• Fabric: Active3D™ (thermoformed closed-cell, waterproof)
• Splints: double-axis polycentric splints with rack and pinion and silicone insert (Splint 2)
• Paddings: 3D anatomical relief supports (EVA and supporting foams)
• Lining: comfort EVA foam covered with cotton and terry
• Straps: 5 straps
• Side specific: right and left versions available
• Waterproof: yes (tested in brine)
• Classification: Class I medical device (Regulation (EU) 2017/745)
