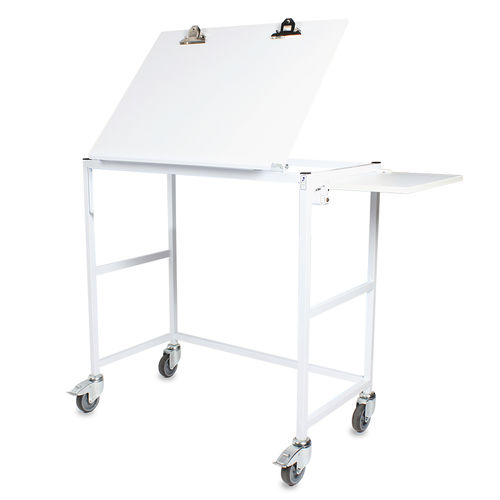

Medical trolley CWF/80 series

medical recordsmulti-functionpatient care

Features

• Fixed-height chart workstation designed for clinical charting and documentation
• Angle-adjustable chartboard with spring clip, tilt 0–50°
• Usable chart area: 800 x 530 mm (W x H)
• Lower lip on chartboard to retain pens and documents
• Fully welded mild steel frame
• Carerails fitted to each side (2 x left-hand, 1 x right-hand) for mounting accessories
• Drop-down work flap fitted to right-hand side
• 100 mm pressed-steel castors; two with brakes

Dimensions (W x D x H)

• Overall dimensions: 1010 x 550–620 x 1040–1450 mm
• Usable chart area: 800 x 530 mm
• Work flap: 420 x 290 mm (W x D)

Standard Colours

• Paint: White
• Chartboard / Work flap: White

Product variants / codes
Code | Description | Overall Dimensions (W x D x H)
CWF/80 | Chart Workstation - Fixed Height | 1010 x 550–620 x 1040–1450 mm
CWF/80/SP | Chart Workstation - Fixed Height, Storage Pocket | 1010 x 550–620 x 1040–1450 mm


Technical specifications

• Model: CWF/80 (also available as CWF/80/SP with storage pocket)
• Usable chart area: 800 x 530 mm
• Chartboard tilt: 0–50° (spring clip fitted)
• Work flap size: 420 x 290 mm (drop-down, right-hand side)
• Frame: fully welded mild steel
• Accessories: carerails (2 left-hand, 1 right-hand) for mounting accessories
• Castors: 100 mm pressed steel, two with braking
• Finish: Paint - White; Chartboard / Work flap - White
• Overall dimensions: 1010 x 550–620 x 1040–1450 mm
