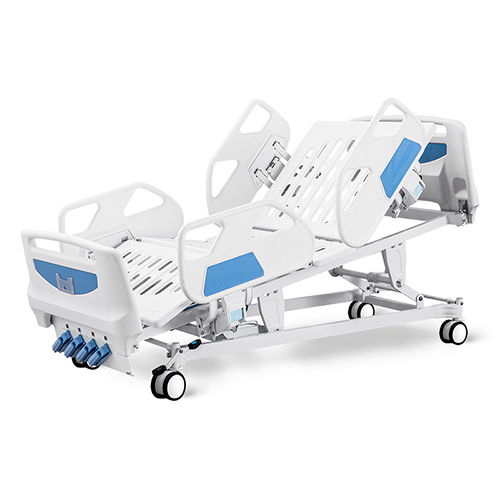

Nursing home bed B4e

medicalhospitalmanual

B4e Manual bed is used in Ward Technical Parameters External L*W*H:2160*1060*(460-720)mm Mattress Platform:1925*900mm Safe Working Load:250kg Back-rest Adjustment:0-75°(±10°) Knee-rest Adjustment:0-35°(±10°) Reverse Trendelenburg:0-12° Trendelenburg:0-12° Accessories Manual Cranks:4pcs 6" Double Side Secure®Castors,Central Locking:4pcs ABS Side Rail Extra Height:1set ABS Bed Ends with Safe Lock:1set IV Pole:1set IV Pole Prevision:4pcs Drainage Hook:2pcs Angle Indicator:4pcs Central Locking Pedal:2pcs Important Quality Control * 380mm height siderail from the bed platform, max. protect patient * Baosteel from Fortune Global 500 * Environmental plastic can be sterilized in 100°C,tensile upto 30MPa * Solid bed base made of 5.0mm stamped rotating plate * Central locking break qualified after 10,000times uninteruped break * Retractable hand crank, 100,000 times remaining intact * 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact * Panasonic Robotic ensure * 360° full smooth wedlding * Extreme protection device, sounds when tipped to the max position * Strong pallets to increase the bed height adjustment(460-720mm) Accessories Details * Stamping forming platform, smooth surface no welding scar, bearing 250KG load. Option ABS platform and resin X-ray translucent platform * E-shaped foldable guardrail, easy to install, easy to clean, anti-pinch, protect patient's safety * Virgin ABS material * Side rails and elevator mechanism Patent angle indicator * Secure® castors * Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time * Plastic drainage hook, movable
