Wheelchair chest support Dynamic 6-point chest vest AIR

positioningfor disabled personsadjustable

Product summary

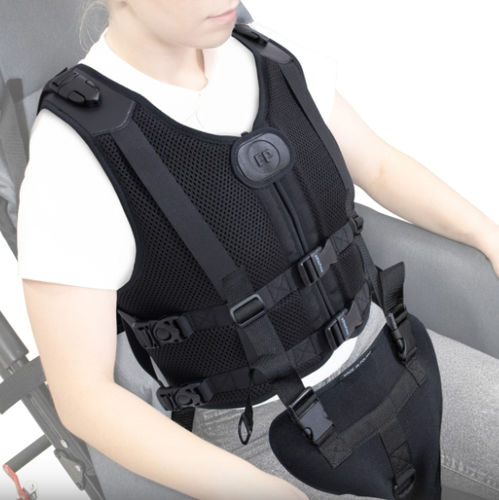

The Dynamic 6-point chest vest AIR with pelvic stabilizer is a professional registered medical device designed to stabilise the user in a sitting position in a wheelchair or rehabilitation chair. The product consists of a chest part (harness) and a pelvic strap. Both the harness and the pelvic support have a wide range of adjustment, allowing for an individual fit for the user.

Function and key features
The Dynamic 6-point chest vest AIR with pelvic stabilizer keeps the user in the correct sitting position. The product has the option of attaching to the seat back with shoulder straps, which maintain the joints in external rotation and the user’s shoulder girdle in a stable position. This solution prevents the patient from a pathological flexion pattern of the upper limbs and also prevents their uncontrolled tendon reflexes.

The AIR 6-point harness is made from a very thick and perforated 3D knit fabric, which allows the body to breathe and the harness does not cause pressure and skin injuries, even on the user’s sensitive skin.

The pelvic strap is attached to the harness with frontal straps. It keeps the pelvis in the physiological position as much as it is possible. In addition, this pelvic strap keeps the patient securely on the seat of the wheelchair or rehabilitation chair, even with very little postural control of the user. Made of firm, pressure-reducing neoprene, it has wrap around straps that do not allow the pelvis to extend forward while sitting. By using the length of these wrap around straps, the amount of forward freedom of movement left to the user can be adjusted.

The pelvic support is anatomic shaped. It fits to the groin area perfectly, avoiding irritation of the inner thighs and allowing the product to remain comfortable even for those with a scissor pattern of lower limbs.

The AIR 6-point harness is fully adjustable in circumference, width and length of the shoulder straps for a customised fit. The harness ensures proper positioning of the trunk and pelvis in the sitting position. It perfectly stabilises the sternum and reduces excessive flexion pattern. It effectively improves head control, facilitates swallowing and breathing.

The use of the product in people with limited consciousness when assisted by a carer is possible due to the front secured zip to facilitate donning the product and the additional buckles securing the fastening, acting as a safety device in the event of a zip failure.

The AIR 6-point dynamic harness is a suitable medical product for people with spasticity, seizures, muscular dystrophy, Parkinson’s, disability or anyone at risk of falling from a wheelchair or rehabilitation chair.

ATTENTION / Safety notes
Attention: for safety reasons chest support with zipper should be used only by people without mental illness.
Each chest support is available with front-pull (user’s fitting) or rear-pull (caregiver’s fitting). Choose your option while ordering the product.
Before using the chest support, it is essential to familiarize yourself with the safety rules referred in the instructions of use. For information on how to use chest support safety, see pages 8-9. Improper use and failure to comply with safety rules may endanger the user’s life and cause a serious detriment to the health of a person.

Special advantages (high-level)

• Anatomical shape: maintains the chest’s shape; design prevents upward shifting while user leans forward and reduces risk of pressure on the throat.
• Dynamic fabric’s structure: multi-directional knitted fabric provides proper dynamics and improves breathing; reduces pressure in case of involuntary movements, myoclonus and spasms.
• Hold & Pull™ System: ergonomic, large D-shaped grip facilitates use by people with hand dysfunctions; easy to hold and adjust the vest.
• Rear-pull (caregiver’s fitting) option available.
• Made of durable materials with smooth edges to prevent abrasion and skin lesions; special fiber structure prevents belts from loosening.
• Easy to clean: straps and soft elements can be washed by hand.
• Quick release buckles made of durable materials and do not contain metal parts.

Size table (DYNAMIC 6-POINT CHEST AIR VEST WITH PELVIC STABILIZER - FP-36)
Columns: Size | Available colors | A (min - max) | B (min - max) | C (min - max) | D | E | F | G | Chest circumference
FP-36-S | black | 50 - 70 cm | 32 - 36 cm | 2 - 40 cm | 58 cm | 48 cm | 2.5 cm | 19 cm | 50 - 70 cm
FP-36-M | black | 70 - 100 cm | 41 - 45 cm | 2 - 45 cm | 63 cm | 53 cm | 2.5 cm | 29 cm | 70 - 100 cm
FP-36-L | black | 100 - 135 cm | 43 - 47 cm | 2 - 50 cm | 68 cm | 58 cm | 2.5 cm | 30 cm | 100 - 135 cm

Size table (6-point stabilizer dimensions)
Columns: Size | Available colors | A | B | C | D
FP-36-S | black | 45 cm | 23 cm | 2.5 cm | 5.5 cm
FP-36-M | black | 68 cm | 28 cm | 3 cm | 6.5 cm
FP-36-L | black | 78 cm | 31 cm | 3 cm | 7 cm

Accessories / Mounting elements (summary)
Mounting triangle: used for installation of straps in belts and vests on strollers and wheelchairs.
D-shaped grip: ergonomic grip facilitating users with hand dysfunctions; easy to hold and adjust.
Strap buckle: secures the user and can be quickly unbuckled in case of emergency.
Fastening strap: adjustable to adapt product to the user’s body by changing strap length.
Sliding buckle: prevents strap loosening and movement.

Characteristics / technical specifications

• Product code: FP-36
• Commercial model name: Dynamic 6-point chest vest AIR (with pelvic stabilizer)
• Category: Torso stabilization
• Registered medical device: Class I medical products
• Main materials: thick perforated 3D knit fabric (AIR) for harness; firm, pressure-reducing neoprene for pelvic strap; durable materials with smooth edges
• Adjustment: fully adjustable in circumference, width and shoulder strap length; front-pull (user) or rear-pull (caregiver) options
• Fastening: front secured zip (for donning) plus additional safety buckles; quick release buckles without metal parts
• Intended users: people with spasticity, seizures, muscular dystrophy, Parkinson’s disease, reduced postural control, or anyone at risk of falling from a wheelchair
• Functional benefits: stabilises trunk and pelvis, improves head control, facilitates swallowing and breathing, prevents pathological flexion patterns
• Cleaning: straps and soft elements washable by hand
• Available sizes: FP-36-S / FP-36-M / FP-36-L
• Available colour (shown): black
• Warranty: 12 months (manufacturer warranty stated for FlexPoint® products)
