Digital video microscope AM4113TL-FVW
inspectionlaboratoryUV

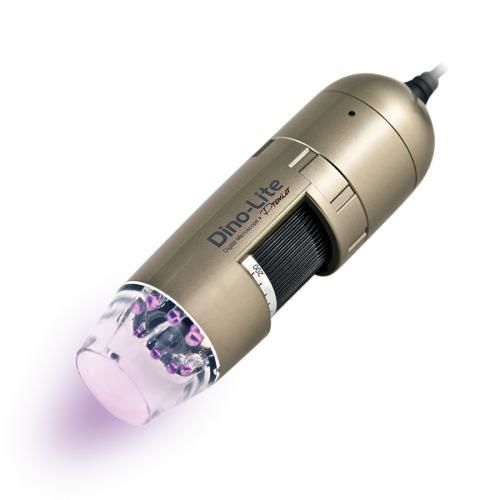

Digital video microscope - AM4113TL-FVW - Dino-Lite Europe - inspection / laboratory / UV
Digital video microscope - AM4113TL-FVW - Dino-Lite Europe - inspection / laboratory / UV
Add to favorites
Compare this product
Go to the Dino-Lite Europe website for more information

Characteristics

Type
digital
Applications
inspection, laboratory
Light source
with LED light, white light, UV
Options and accessories
USB camera, USB
Other characteristics
digital camera
Magnification

Min.: 10 unit

Max.: 90 unit

Weight

105 g
(3.7 oz)

Length

10.5 cm
(4.1 in)

Description

Product description
The AM4113TL-FVW is a digital USB microscope designed for industrial inspection and laboratory tasks. It features switchable illumination between 395 nm UV and white light, a long working distance (examples up to 151.0 mm at 20x) and an emission barrier filter to suppress returning UV for more natural color imaging. The device supports measurement and calibration workflows and integrates via USB 2.0 for Windows and Mac systems.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
20 | 151.0 | 19.6 | 15.6 | 6
30 | 101.0 | 13.0 | 10.4 | 3.4
40 | 77.2 | 9.8 | 7.8 | 2.2
50 | 64.1 | 7.8 | 6.3 | 1.65
60 | 56.2 | 6.5 | 5.2 | -
70 | 51.3 | 5.6 | 4.5 | -
80 | 48.3 | 4.9 | 3.9 | -
90 | 48.6 | 4.3 | 3.5 | 0.8

Special light
Product images demonstrate ultraviolet (UV) illumination and the effect of the emission barrier filter when imaging under UV light. The filter reduces UV return to preserve natural color balance while enabling UV inspection.

Specifications
  • Model: AM4113TL-FVW
  • Brand: Dino-Lite
  • Lighting - LED type: 395 nm UV + white (switchable)
  • Lighting - Number of LEDs: 4 + 4
  • Lighting - LED on/off switchable: Yes
  • Lighting - Infrared filter: IR cut-filter >650 nm
  • Lighting - Emission filter: Emission barrier filter 400 nm
  • Optics - Magnification: 10x ~ 90x
  • Optics - Working distance: Long (examples: 151.0 mm at 20x)
  • Optics - Lens type: Glass with anti-reflection coating
  • Sensor - Type: CMOS
  • Sensor - Resolution: 1.3 Megapixel (1280x1024)
  • Sensor - Max frame rate: 30 fps
  • Compatibility - Interface: USB 2.0
  • Compatibility - OS: Windows 7/8/10/11, MacOS 10.9+
  • Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
  • Imaging standards: DirectShow, UVC
  • Housing - Material: Composite / plastic
  • Housing - Dimensions: 10.5 cm (L) x 3.2 cm (D)
  • Housing - Weight: 105 g
  • Features - Measurement: Yes; Calibration: Yes; Microtouch sensor: Yes; ESD safe: No


Package & compliance
  • Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-C, N3C-EB, N3C-L, N3C-OB, N3C-S
  • Warranty: 2 years European warranty
  • Regulatory approvals: CE, FCC, ROHS
  • Price range: €400,00 - €600,00
