Digital video microscope AM5218MZT

inspectionpolarizinghand-held

Product overview

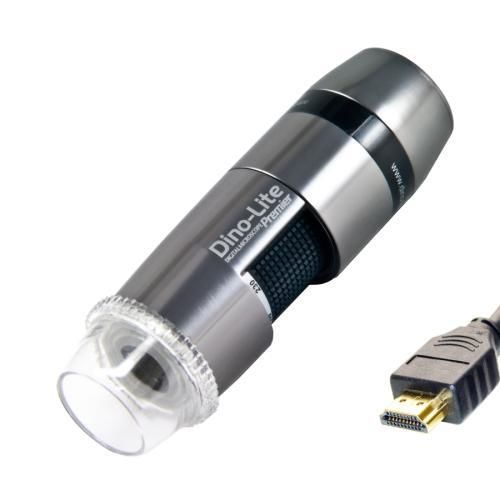

The Dino-Lite AM5218MZT Edge is a digital microscope with a direct DVI/HDMI interface for connection to HDTVs or LCD monitors. It delivers HD 720p output optimized for real-time inspection of small components and miniature objects, such as PCB assemblies and precision parts. The built-in adjustable linear polarizer reduces glare on reflective surfaces while the aluminium housing and ESD-safe design suit industrial inspection environments.

Key features

• Direct DVI/HDMI interface for HD 720p output
• Maximum frame rate up to 60 fps for real-time imaging
• Microtouch sensor: short press to freeze image; press 2s to toggle LEDs
• Built-in adjustable linear polarizer to reduce glare and reflections
• Metal (aluminium) housing with magnification lock and ESD-safe design
• 8 white LEDs, LED on/off switchable
• Magnification range 20x–220x

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20x | 60.2 mm | 19.5 mm | 11.7 mm | 2.5 mm
30x | 33.5 mm | 13.0 mm | 7.8 mm | 1.8 mm
40x | 20.9 mm | 9.8 mm | 5.9 mm | 1.5 mm
50x | 13.9 mm | 7.8 mm | 4.7 mm | -
60x | 9.7 mm | 6.5 mm | 3.9 mm | -
70x | 7.1 mm | 5.6 mm | 3.4 mm | 1.0 mm
80x | 5.5 mm | 4.9 mm | 3.0 mm | -
90x | 4.5 mm | 4.3 mm | 2.6 mm | -
100x | 4.1 mm | 3.9 mm | 2.3 mm | -
110x | 4.0 mm | 3.6 mm | 2.1 mm | -
120x | 4.1 mm | 3.3 mm | 2.0 mm | -
130x | 4.5 mm | 3.0 mm | 1.8 mm | -
140x | 5.0 mm | 2.8 mm | 1.7 mm | -
150x | 5.6 mm | 2.6 mm | 1.6 mm | -
160x | 6.3 mm | 2.4 mm | 1.5 mm | -
170x | 7.1 mm | 2.3 mm | 1.4 mm | -
180x | 8.0 mm | 2.2 mm | 1.3 mm | -
190x | 8.9 mm | 2.1 mm | 1.2 mm | -
200x | 9.9 mm | 2.0 mm | 1.2 mm | -
210x | 10.9 mm | 1.9 mm | 1.1 mm | -
220x | 11.9 mm | 1.8 mm | 1.1 mm | 0.1 mm

Package contents

• Microscope
• Carry pouch
• DVI & HDMI cable
• Power adapter
• User manual
• N3C-O Open cap
• N3C-C Closed cap
• N3C-D Diffuser cap
• N3C-E Extension cap
• N3C-L Long cap
• N3C-S Side light cap

Technical specifications

• Brand: Dino-Lite
• Model: AM5218MZT Edge
• Lighting / LED type: White, 8 LEDs (on/off switchable)
• Infrared filter: IR cut-filter >650 nm
• Polarizer: Linear, adjustable
• Magnification: 20x ~ 220x
• Lens type: Glass with anti-reflection coating
• Sensor type: CMOS
• Resolution: HD 720p
• Maximum frame rate: 60 fps
• Interface: DVI & HDMI (direct)
• WiFi: No
• Housing material: Metal (aluminium)
• Magnification lock: Yes
• Working distance: Standard (values per magnification in optical table)
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 125 g
• Cable length: 1.8 m
• Microtouch sensor: Yes (image freeze / LED control)
• ESD safe: Yes
• Measurement / Calibration: No
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range (informative): €900.00 - €1,100.00
