Digital video microscope AM4013MZT4

inspectionpolarizingportable

Overview

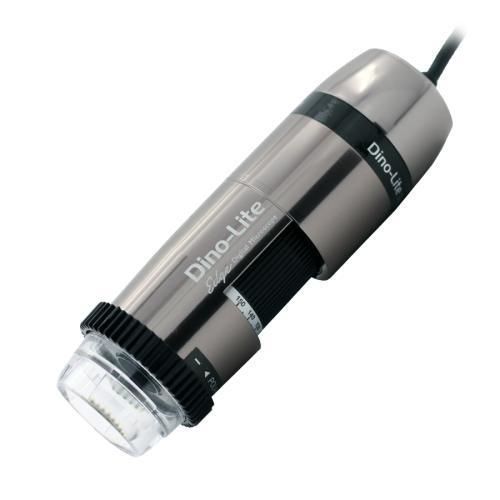

The Dino-Lite AM4013MZT4 is a USB digital microscope providing 400x–470x magnification for detailed inspection of small parts and surfaces. The built-in, switchable linear polarizer helps control reflections on high-glare materials such as jewelry, plastics and metals. The metal (aluminum) housing increases protection and provides a compact, portable form factor suitable for inspection and quality control tasks.

Key features

• Magnification range: 400x ~ 470x
• Built-in switchable linear polarizer
• Metal (aluminum) housing
• Illumination: 8 white LEDs, switchable
• IR cut filter (>650 nm)
• Glass lens with anti-reflection coating
• CMOS sensor, 1.3 MP (1280x1024), up to 30 fps
• USB 2.0 interface (DirectShow, UVC)
• Measurement and calibration functions; Microtouch sensor; ESD safe

Optical data table
Unit = mm
MAGNIFICATION RATE: 430 — WORKING DISTANCE: -0.45 — FIELD OF VIEW (X): 0.91 — FIELD OF VIEW (Y): 0.73 — DEPTH OF FIELD: 0.1
MAGNIFICATION RATE: 440 — WORKING DISTANCE: 0.4 — FIELD OF VIEW (X): 0.89 — FIELD OF VIEW (Y): 0.71 — DEPTH OF FIELD: 0.1
MAGNIFICATION RATE: 450 — WORKING DISTANCE: 1.35 — FIELD OF VIEW (X): 0.87 — FIELD OF VIEW (Y): 0.70 — DEPTH OF FIELD: 0.1
MAGNIFICATION RATE: 460 — WORKING DISTANCE: 2.3 — FIELD OF VIEW (X): 0.85 — FIELD OF VIEW (Y): 0.68 — DEPTH OF FIELD: 0.1
MAGNIFICATION RATE: 470 — WORKING DISTANCE: 3.15 — FIELD OF VIEW (X): 0.83 — FIELD OF VIEW (Y): 0.67 — DEPTH OF FIELD: 0.1

Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polarizer: Yes, linear (built-in, switchable)

Optics

• Magnification: 400x ~ 470x
• Macro zoom: No
• Working distance: Standard (see optical data table for values)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (requires WF-10 WiFi streamer, optional)

Housing & Physical

• Housing material: Metal (aluminum)
• Magnification lock: No
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8 m

Features

• Special feature: —
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: Yes

Information & Packaging

• Package contents: Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual
• Warranty information: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range indicated: €600.00 - €800.00

Technical specifications

• Model: AM4013MZT4
• Brand: Dino-Lite
• Magnification: 400x ~ 470x
• Optical field of view and working distances: see optical data table (430–470 values)
• LEDs: 8 white LEDs, switchable
• Polarizer: Built-in, linear, switchable
• Lens: Glass with anti-reflection coating
• Sensor: CMOS, 1.3 MP (1280x1024)
• Frame rate: up to 30 fps
• Interface: USB 2.0
• OS compatibility: Windows 7/8/10/11 and MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Standards: DirectShow, UVC
• Housing: Metal (aluminum)
• Dimensions: 10.5 cm x 3.2 cm
• Weight: 105 g
• Cable length: 1.8 m
• ESD safe: Yes
• Calibration & Measurement: Supported
• Warranty: 2 years (Europe)
