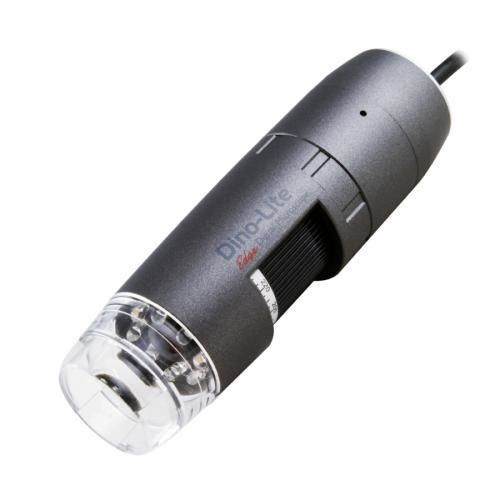

Digital video microscope AM4115-FKT

inspectioninfraredhand-held

Overview
The AM4115-FKT is a Dino-Lite Edge digital microscope with special LED illumination emitting infrared light around 780 nm. The adaptable cap design increases flexibility for inspection and imaging tasks. Alternative LED wavelengths (~850 nm or 940 nm) are available in models AM4115-FJT and AM4115-FIT.

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
20 | 60.2 | 19.5 | 15.6 | 2.5
30 | 33.5 | 13.0 | 10.4 | 1.8
40 | 20.9 | 9.8 | 7.8 | 1.5
50 | 13.9 | 7.8 | 6.3 | -
60 | 9.7 | 6.5 | 5.2 | -
70 | 7.1 | 5.6 | 4.5 | 1.0
80 | 5.5 | 4.9 | 3.9 | -
90 | 4.5 | 4.3 | 3.5 | -
100 | 4.1 | 3.9 | 3.1 | -
110 | 4.0 | 3.6 | 2.8 | -
120 | 4.1 | 3.3 | 2.6 | -
130 | 4.5 | 3.0 | 2.4 | -
140 | 5.0 | 2.8 | 2.2 | -
150 | 5.6 | 2.6 | 2.1 | -
160 | 6.3 | 2.4 | 2.0 | -
170 | 7.1 | 2.3 | 1.8 | -
180 | 8.0 | 2.2 | 1.7 | -
190 | 8.9 | 2.1 | 1.6 | -
200 | 9.9 | 2.0 | 1.6 | -
210 | 10.9 | 1.9 | 1.5 | -
220 | 11.9 | 1.8 | 1.4 | 0.1

Lighting

• Light / LED type: ~780 nm Infrared
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR pass filter
• Diffuser available: No
• Emission filter: No
• Polarizer: No

Optics

• Magnification: 20x ~ 220x
• Macro zoom: No
• Working distance: Standard (see optical data)
• Lens type: Glass with anti-reflection coating
• Magnification lock: Yes

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (requires optional WF-10 WiFi streamer)

Housing

• Housing material: Composite / plastic
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 100 g
• Cable length: 1.8 m

Features

• Measurement: Yes
• Calibration: Yes (calibration target included)
• Microtouch sensor: Yes
• ESD safe: No

Package & compliance

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): €600.00 - €800.00

Technical specifications (summary)

• Model: AM4115-FKT
• Type of lighting: ~780 nm infrared, 8 LEDs, LED on/off switchable, IR pass filter
• Magnification range: 20x – 220x
• Sensor: CMOS, 1.3 MP (1280x1024), 30 fps
• Interface: USB 2.0; Wireless-ready with optional WF-10
• Lens: Glass with anti-reflection coating; magnification lock
• Dimensions / Weight: 10.5 cm x 3.2 cm / 100 g
• Cable: 1.8 m
• Includes measurement and calibration functions; microtouch sensor
• Regulatory: CE, FCC, ROHS; Warranty: 2 years (Europe)
