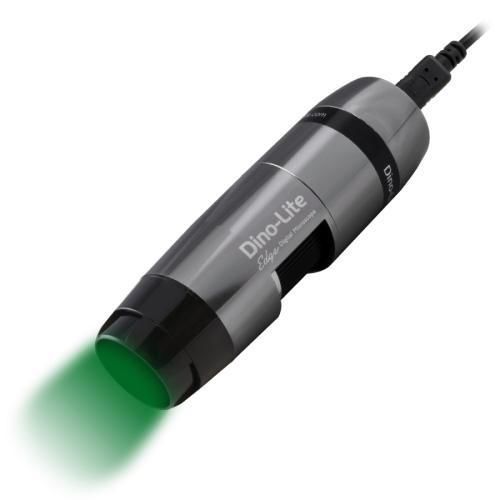

Digital video microscope AM4517MT-YFGW

for biologylaboratoryclinical

Product overview
The AM4517MT-YFGW is a compact digital fluorescence microscope designed for visualization of green-yellow to red fluorophores in laboratory and clinical workflows. It integrates 520 nm excitation LEDs and a 570–650 nm emission filter to detect probes such as EYFP, mCherry and Alexa Fluor 594. The unit supports 20x–220x magnification and includes Automatic Magnification Readout (AMR) for straightforward measurement and documentation.

Main features

• 1.3 Megapixel CMOS sensor (1280x960)
• High-sensitivity fluorescence detection (green-yellow to red)
• 520 nm excitation + switchable white light
• Emission filter 570–650 nm
• Automatic Magnification Readout (AMR) and measurement/calibration functions
• USB 2.0 interface with DinoCapture 2.0 (Windows) / DinoXcope (Mac)
• Compact metal housing, 104 mm × 32 mm, 90 g

Optical data (table)
Magnification Rate | Working Distance * | Field of View (x) | Field of View (y) | Depth of Field (Unit = mm)
20x | 59.8 | 19.53 | 14.65 | 7.05
30x | 33.1 | 13.02 | 9.77 | 3.36
40x | 20.5 | 9.77 | 7.32 | 2.02
50x | 13.4 | 7.81 | 5.86 | 1.38
60x | 9.2 | 6.51 | 4.88 | 1.01
70x | 6.7 | 5.58 | 4.19 | 0.79
80x | 5.1 | 4.88 | 3.66 | 0.64
90x | 4.1 | 4.34 | 3.26 | 0.53
100x | 3.7 | 3.91 | 2.93 | 0.45
110x | 3.6 | 3.55 | 2.66 | 0.39
120x | 3.7 | 3.26 | 2.44 | 0.34
130x | 4.1 | 3.01 | 2.25 | 0.30
140x | 4.5 | 2.79 | 2.09 | 0.27
150x | 5.2 | 2.60 | 1.95 | 0.25
160x | 5.9 | 2.44 | 1.83 | 0.22
170x | 6.7 | 2.30 | 1.72 | 0.21
180x | 7.5 | 2.17 | 1.63 | 0.19
190x | 8.5 | 2.06 | 1.54 | 0.18
200x | 9.4 | 1.95 | 1.46 | 0.16
210x | 10.5 | 1.86 | 1.40 | 0.15
220x | 11.5 | 1.78 | 1.33 | 0.14
* Without front cap

Technical specifications

• Lighting: 520 nm excitation (7 FL LEDs) + white light (1 LED), LED on/off switchable
• Emission filter: 570–650 nm
• Lens: glass with anti-reflection coating
• Sensor: 1.3 MP CMOS, max 30 fps
• Interface: USB 2.0; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported OS: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Video formats (Windows): WMV, FLV, SWF; Mac image/video: JPEG, PNG / MOV
• Dimensions: 104 mm (H) × 32 mm (D); Weight: 90 g; Cable length: 1.8 m
• Housing: metal; Magnification lock: Yes; Measurement & calibration: Yes; Microtouch sensor: Yes
• Package contents: microscope, carry pouch, calibration target, user manual, N3C-C, N3C-EB, N3C-LB, N3C-OB
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Fluorophores supported: EYFP, mCherry, Alexa Fluor 594
• Price range: €1200,00 - €1400,00
