Digital video microscope AM6218MZT

inspectionhand-heldportable

Product overview

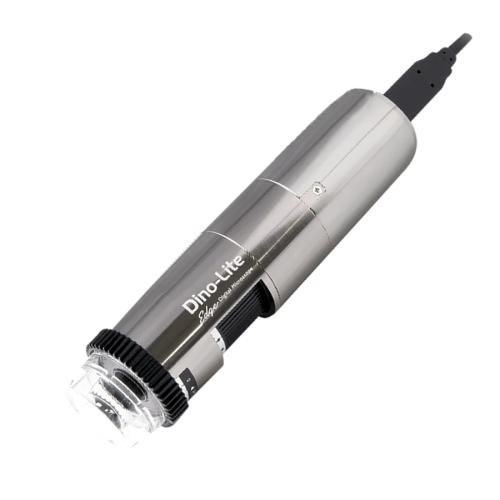

The Dino-Lite AM6218MZT is a digital microscope with a 10x–220x magnification range and direct Full HD HDMI output (1080p at 60 fps) for real-time imaging on displays without a PC. Its anodized aluminum alloy housing provides mechanical protection and EMI shielding for use in industrial inspection, quality control and live demonstrations.

Main features

• Direct HDMI Full HD 1080p output at 60 fps
• 10x–220x magnification with macro zoom
• Adjustable polarizer with 8 white LEDs
• Microtouch control and magnification lock
• Anodized aluminum alloy housing with EMI shielding

Lighting
Light / LED type: White
Number of LEDs: 8
Polarizer: Yes

Optics
Magnification: 10x – 220x
Macro zoom: Yes
Working distance: Standard
Lens type: 1/2.8

Sensor
Sensor type: CMOS
Resolution: Full HD 1080p
Maximum frame rate: 60 fps

Compatibility
Interface: HDMI (direct output to monitor)

Housing
Housing material: Anodized aluminum alloy / metal housing with EMI shielding
Magnification lock: Yes
Dimensions: 130 mm (H) x 33 mm (D)
Weight: 120 g
Cable length: Type-C to Type-A (1.8 m); Mini-HDMI to HDMI (1.8 m)

Features
Microtouch sensor: Yes

Information
Package contents: Microscope, carry pouch, calibration target, user manual, N3C caps (C, D, D2, E, L, O, S)
Warranty: 2 years European warranty
Regulatory approvals: CE, FCC, RoHS
Price range: €900.00 - €1,100.00

Technical specifications

• Model: AM6218MZT
• Brand: Dino-Lite
• Magnification range: 10x – 220x
• Optical zoom: Macro zoom (Yes)
• Lens: 1/2.8
• Illumination: 8 white LEDs with adjustable polarizer
• Image sensor: CMOS, Full HD 1080p
• Frame rate: up to 60 fps
• Interface: HDMI (direct Full HD output)
• Housing: Anodized aluminum alloy / metal housing with EMI shielding
• Dimensions: 130 mm (H) x 33 mm (D)
• Weight: 120 g
• Cables: Type-C to Type-A (1.8 m), Mini-HDMI to HDMI (1.8 m)
• Controls: Microtouch sensor, magnification lock
• Package contents: Microscope, carry pouch, calibration target, user manual, N3C caps (C, D, D2, E, L, O, S)
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, RoHS
• Price range: €900.00 - €1,100.00
