Digital video microscope AM4115-FIT

inspectionnear-infraredhand-held

Overview

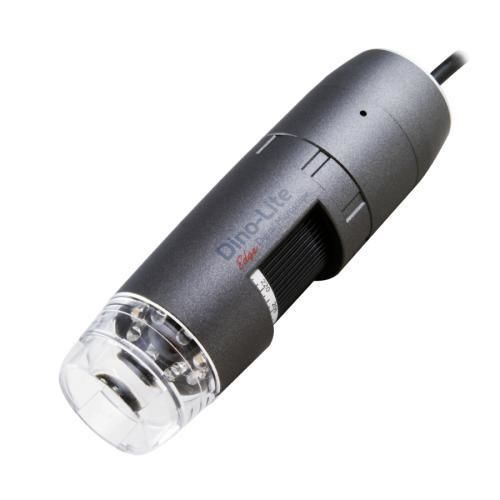

The Dino-Lite AM4115-FIT is a USB digital microscope designed for inspection and imaging with infrared illumination. It uses LEDs emitting near‑infrared light (~850 nm) and delivers a magnification range from 20x to 220x with an anti-reflection coated glass lens.

Optical data (selected values)
Unit = mm
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20x | 60.2 | 19.5 | 15.6 | 2.5
30x | 33.5 | 13.0 | 10.4 | 1.8
40x | 20.9 | 9.8 | 7.8 | 1.5
50x | 13.9 | 7.8 | 6.3 | -
60x | 9.7 | 6.5 | 5.2 | -
70x | 7.1 | 5.6 | 4.5 | 1.0
80x | 5.5 | 4.9 | 3.9 | -
90x | 4.5 | 4.3 | 3.5 | -
100x | 4.1 | 3.9 | 3.1 | -
110x | 4.0 | 3.6 | 2.8 | -
120x | 4.1 | 3.3 | 2.6 | -
130x | 4.5 | 3.0 | 2.4 | -
140x | 5.0 | 2.8 | 2.2 | -
150x | 5.6 | 2.6 | 2.1 | -
160x | 6.3 | 2.4 | 2.0 | -
170x | 7.1 | 2.3 | 1.8 | -
180x | 8.0 | 2.2 | 1.7 | -
190x | 8.9 | 2.1 | 1.6 | -
200x | 9.9 | 2.0 | 1.6 | -
210x | 10.9 | 1.9 | 1.5 | -
220x | 11.9 | 1.8 | 1.4 | 0.1

Lighting

• Light / LED type: ~850 nm infrared LEDs (8 LEDs)
• LED on/off: switchable
• Infrared filter: IR pass filter
• Diffuser / emission filter / polarizer: not available

Optics

• Magnification range: 20x – 220x (magnification lock included)
• Lens: glass with anti-reflection coating
• Working distance: standard (see optical data)
• Macro zoom: no

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280 x 1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0 (DirectShow, UVC)
• Operating systems: Windows 7/8/10/11, MacOS 10.9+
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported image formats (Windows/Mac): BMP, GIF, PNG, JPG, TIF, etc.
• Supported video formats: WMV, FLV, SWF (Windows); MOV (Mac)
• Wireless: wireless-ready with optional WF-10 WiFi streamer

Housing

• Material: composite / plastic housing
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 1.8 m
• Magnification lock: yes

Features

• Measurement and calibration functions (calibration target included)
• Microtouch sensor: yes
• ESD safe: no
• Special feature: none

Package & regulatory

• Package contents: microscope, carry pouch, software CD, calibration target, user manual
• Warranty: 2 years (European warranty)
• Regulatory approvals: CE, FCC, ROHS
• Indicative price range: €500,00 - €700,00

Technical specifications (summary)

• Model: AM4115-FIT
• Brand: Dino-Lite
• Lighting: ~850 nm IR, 8 LEDs, switchable, IR pass filter
• Magnification: 20x–220x
• Sensor: CMOS, 1.3 MP (1280x1024), up to 30 fps
• Interface: USB 2.0 (UVC / DirectShow)
• OS & software: Windows 7/8/10/11 (DinoCapture 2.0), MacOS 10.9+ (DinoXcope)
• Housing & dimensions: composite/plastic, 10.5 cm x 3.2 cm, 105 g
• Included: calibration target, carry pouch, software CD, manual
