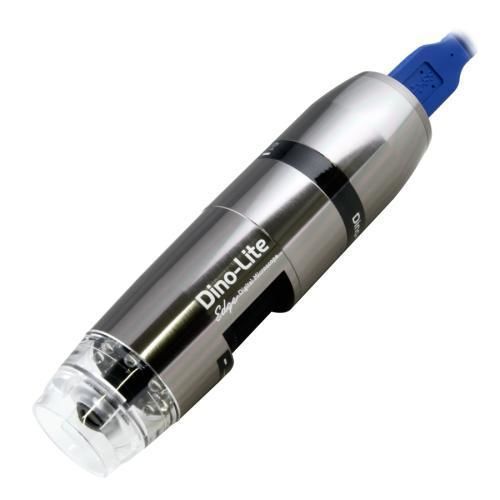

Digital video microscope AM73515MT4A

inspectionLEDwhite light

Product overview
Equipped with built-in coaxial lighting controlled via eFLC, the AM73515MT4A (Dino-Lite) delivers brightfield imaging for inspecting reflective surfaces and complex topographies. USB 3.0 interface provides uncompressed live images for high-detail inspection and measurement.

Optical data table
M | WD | FOV (x) | FOV (y) | DOF
420 | 6.8 | 0.93 | 0.70 | 0.04
430 | 7.7 | 0.91 | 0.68 | 0.04
440 | 8.6 | 0.89 | 0.67 | 0.04
450 | 8.6 | 0.87 | 0.65 | 0.04
460 | 8.5 | 0.85 | 0.64 | 0.03
470 | 8.5 | 0.83 | 0.62 | 0.03

Specifications
Lighting

• Light / LED type: White LED, coaxial, controlled by eFLC

Optics

• Magnification: 420x–470x

Sensor

• Resolution: 5.0 Megapixel (2560x1920)
• Maximum frame rate: 15 fps at 5 MP (YUY2); 45 fps at 1.3 MP (YUY2)

Compatibility

• Interface: USB 3.0 (uncompressed live images)
• Operating systems: Windows 7/8/10/11; macOS 10.14 or later
• Supported image formats (Windows): BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (macOS): PNG, JPEG
• Supported video formats (macOS): MOV

Housing

• Magnification lock: Yes
• Dimensions: 121 mm (H) x 32 mm (D)
• Weight: Approx. 110 g
• Cable length: Approx. 1.8 m

Features

• Measurement functions: Yes
• Calibration: Yes
• Microtouch sensor: Yes

Information

• Package contents: N3C-C (Close Cap), N3C-E (Extended Open Cap), N3C-O (Open Cap)
• Warranty: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS

Technical specifications / key data

• Model: AM73515MT4A
• Brand: Dino-Lite
• Lighting: Coaxial white LED (eFLC controlled)
• Magnification: 420x–470x
• Sensor resolution: 5.0 MP (2560x1920)
• Max frame rate: 15 fps @5MP; 45 fps @1.3MP (YUY2)
• Interface: USB 3.0
• OS support: Windows 7/8/10/11; macOS 10.14+
• Dimensions / weight / cable: 121 mm × 32 mm / ~110 g / ~1.8 m
• Measurement & calibration: Yes
• Included accessories: N3C-C, N3C-E, N3C-O
• Certifications: CE, FCC, ROHS
