Product overview

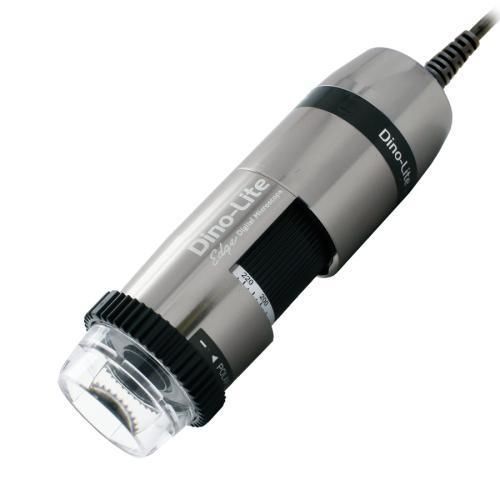

For professionals who need working space to handle targets, the Dino-Lite AM5218MZTF with extra-long working distance (ELWD) provides a practical solution. The AM5218MZTF connects directly to standard LCD monitors via HDMI for real-time inspection and measurement.

Main features

• HDMI interface for direct display on LCDs
• High optical resolution
• Wide Field of View (WFOV)
• Microtouch button for capture/control
• Interchangeable caps (N3C-C, N3C-E, N3C-O)
• HD 720p resolution, up to 60 fps
• Extra-long Working Distance (ELWD)
• 8 white LEDs with on/off switch; polarizer included

Optical Data (Measurement Data)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
Measurement Data
10 | 503 | 39.1 | 31.3 | 31.49
20 | 271 | 19.5 | 15.6 | 8.67
30 | 196 | 13.0 | 10.4 | 4.20
40 | 159 | 9.8 | 7.8 | 2.56
50 | 135 | 7.8 | 6.3 | 1.76
60 | 120 | 6.5 | 5.2 | 1.31
70 | 108 | 5.6 | 4.5 | 1.03
Unit = mm

Specification (summary)

• Lighting: White LED, 8 LEDs; LED on/off switchable; polarizer included
• Optics: Magnification 10x ~ 70x; Working distance: Extra-long (ELWD)
• Sensor: CMOS; Resolution: HD 720p; Maximum frame rate: 60 fps
• Compatibility: HDMI interface (direct to LCDs)
• Housing: Metal; Dimensions: 104 mm (H) x 33 mm (D); Weight: 125 g
• Package contents: Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C-C / N3C-E / N3C-O caps
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS

Characteristics / Technical specifications

• Model: AM5218MZTF
• Brand: Dino-Lite
• Interface: HDMI
• Resolution: HD 720p
• Magnification range: 10x ~ 70x
• Maximum frame rate: 60 fps
• Working distance: Extra-long (ELWD)
• Field of View examples: 39.1 x 31.3 mm (at 10x) down to 5.6 x 4.5 mm (at 70x)
• Depth of Field examples: up to 31.49 mm (at 10x) down to 1.03 mm (at 70x)
• Lighting: 8 white LEDs, switchable; polarizer included
• Housing material: Metal
• Dimensions: 104 mm (H) x 33 mm (D)
• Weight: 125 g
• Package contents: Microscope, carry pouch, DVI & HDMI cable, power adapter, user manual, N3C-C / N3C-E / N3C-O caps
• Warranty: 2 years (Europe)
• Regulatory approvals: CE, FCC, ROHS
