Digital video microscope AM4517MT-RFCW

for biologyfor life sciences applicationsfor research

Description

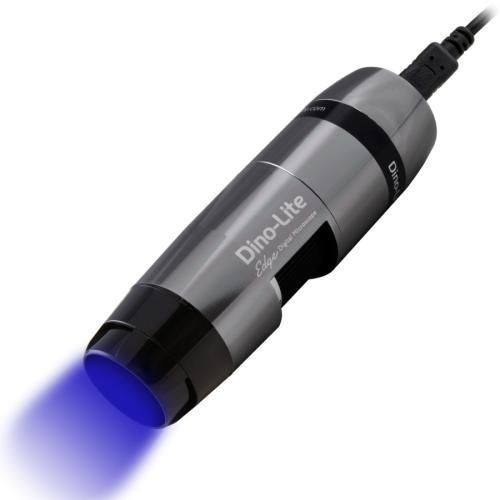

Detect red fluorescence excited by blue light with the high-sensitivity digital microscope AM4517MT-RFCW, offering a magnification range of 20x to 220x. It is equipped with 435 nm excitation LEDs and an emission filter at 615–650 nm, enabling visualization of large Stokes-shift probes such as mKeima, FuraRed and LSSmKate1. This model features Automatic Magnification Readout (AMR) to facilitate measurements.

Main features

• 1.3 Megapixel (1280x960)
• High-sensitivity CMOS sensor
• Large Stokes Shift (LSS) red fluorescence detection
• Switchable white light
• Automatic Magnification Readout (AMR)
• Metal housing

Optical data
Unit = mm
20x — WD: 59.8 — FOV x: 19.53 — FOV y: 14.65 — DOF: 7.05
30x — WD: 33.1 — FOV x: 13.02 — FOV y: 9.77 — DOF: 3.36
40x — WD: 20.5 — FOV x: 9.77 — FOV y: 7.32 — DOF: 2.02
50x — WD: 13.4 — FOV x: 7.81 — FOV y: 5.86 — DOF: 1.38
60x — WD: 9.2 — FOV x: 6.51 — FOV y: 4.88 — DOF: 1.01
70x — WD: 6.7 — FOV x: 5.58 — FOV y: 4.19 — DOF: 0.79
80x — WD: 5.1 — FOV x: 4.88 — FOV y: 3.66 — DOF: 0.64
90x — WD: 4.1 — FOV x: 4.34 — FOV y: 3.26 — DOF: 0.53
100x — WD: 3.7 — FOV x: 3.91 — FOV y: 2.93 — DOF: 0.45
110x — WD: 3.6 — FOV x: 3.55 — FOV y: 2.66 — DOF: 0.39
120x — WD: 3.7 — FOV x: 3.26 — FOV y: 2.44 — DOF: 0.34
130x — WD: 4.1 — FOV x: 3.01 — FOV y: 2.25 — DOF: 0.30
140x — WD: 4.5 — FOV x: 2.79 — FOV y: 2.09 — DOF: 0.27
150x — WD: 5.2 — FOV x: 2.60 — FOV y: 1.95 — DOF: 0.25
160x — WD: 5.9 — FOV x: 2.44 — FOV y: 1.83 — DOF: 0.22
170x — WD: 6.7 — FOV x: 2.30 — FOV y: 1.72 — DOF: 0.21
180x — WD: 7.5 — FOV x: 2.17 — FOV y: 1.63 — DOF: 0.19
190x — WD: 8.5 — FOV x: 2.06 — FOV y: 1.54 — DOF: 0.18
200x — WD: 9.4 — FOV x: 1.95 — FOV y: 1.46 — DOF: 0.16
210x — WD: 10.5 — FOV x: 1.86 — FOV y: 1.40 — DOF: 0.15
220x — WD: 11.5 — FOV x: 1.78 — FOV y: 1.33 — DOF: 0.14

Lighting

• Light / LED type: 435 nm excitation
• Number of LEDs: 7 FL + 1 White
• LED on/off switchable: Yes
• Infrared filter: No
• Diffuser available: No
• Emission filter: 615 nm ~ 650 nm
• Polarizer: No
• Fluorophores: mKeima, FuraRed, LSSmKate1

Optics

• Magnification: 20x ~ 220x
• Working distance: Standard
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x960)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating system: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV

Housing

• Housing material: Metal housing
• Magnification lock: Yes
• Dimensions: 104 mm (H) x 32 mm (D)
• Weight: 90 g
• Cable length: 1.8 m

Features

• Special feature: Automatic Magnification Readout (AMR)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes

Information

• Package contents: Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-LB (Black Long Cap), N3C-OB (Black Open Cap)
• Warranty information: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range: €1200 - €1400

Technical specifications

• Model: AM4517MT-RFCW
• Brand: Dino-Lite
• Lighting: 435 nm excitation (7 FL + 1 White), switchable
• Emission filter: 615 nm ~ 650 nm
• Compatible fluorophores: mKeima, FuraRed, LSSmKate1
• Magnification range: 20x - 220x
• Sensor: CMOS 1.3 MP (1280x960), 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11, MacOS 10.9+
• Housing material: Metal
• Functions: AMR, measurement, calibration, microtouch sensor
• Dimensions / Weight: 104 x 32 mm / 90 g
• Cable length: 1.8 m
• Package: see package contents
• Warranty: 2 years (Europe)
• Regulatory: CE, FCC, ROHS
