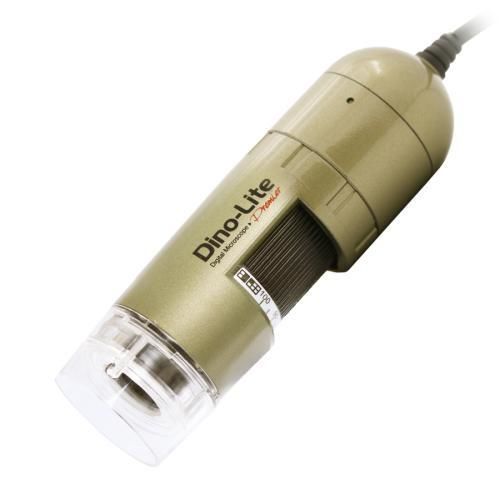

Digital video microscope AM4113TL

inspectionsolderinghand-held

Overview
The AM4113TL is a Dino-Lite USB digital microscope designed for applications requiring an extended working distance: up to 151.0 mm at 20x and approximately 46.6 mm at 90x. The extended working distance makes the TL series suitable for repair, rework and assembly tasks where additional space to the object is needed.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
20 | 151.0 | 19.6 | 15.6 | 6
30 | 101.0 | 13.0 | 10.4 | 3.4
40 | 77.2 | 9.8 | 7.8 | 2.2
50 | 64.1 | 7.8 | 6.3 | 1.65
60 | 56.2 | 6.5 | 5.2 | .
70 | 51.3 | 5.6 | 4.5 | .
80 | 48.3 | 4.9 | 3.9 | .
90 | 46.6 | 4.3 | 3.5 | 0.8
Listed values may differ slightly. Unit = mm

Specification
Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polarizer: No

Optics

• Magnification: 10x ~ 90x
• Macro zoom: No
• Working distance: Long (see optical data table)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready, requires the WF-10 WiFi streamer (optional)

Housing

• Housing material: Composite / plastic housing
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g

Features

• Special feature: No
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: No

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual
• Warranty information: 2 years European warranty
• Regulatory approval: CE, FCC, ROHS
• Price range: €350.00 - €500.00 (indicative)

Technical specifications

• Model: AM4113TL
• Brand: Dino-Lite
• Magnification range: 10x - 90x
• Working distance examples: 151.0 mm at 20x; 46.6 mm at 90x
• Sensor resolution: 1.3 MP (1280x1024)
• Interface: USB 2.0
• LEDs: 8 white LEDs, switchable
• Lens: Glass with anti-reflection coating
• IR filter: IR cut-filter >650 nm
• Dimensions: 10.5 cm x 3.2 cm
• Weight: 105 g
• Measurement & calibration: Yes
• Microtouch sensor: Yes
• Package: Microscope, pouch, software CD, calibration target, manual
• Warranty: 2 years (Europe)
• Compliance: CE, FCC, ROHS
