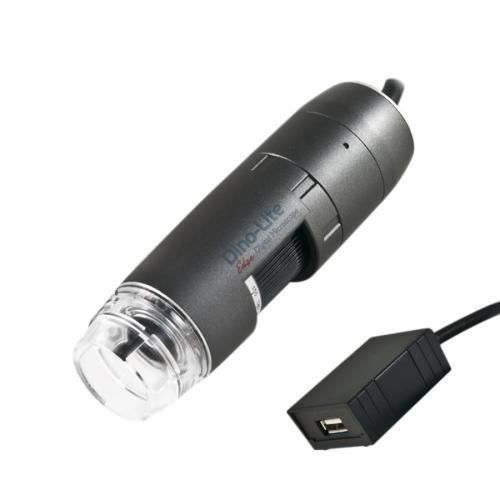

Digital video microscope AM3715TB - EDGE

for biologyinspectionlaboratory

Overview
The Dino-Lite AM3715TB - EDGE is a handheld digital microscope equipped with stroboscopic lighting to reduce motion blur at high magnifications. Designed for inspection and observation of fast-moving subjects, it is suitable for production-line monitoring, laboratory observation and quality control tasks.

Applications
Ideal for industrial inspection, electronics assembly control, laboratory observation of live specimens and any workflow requiring freeze-frame imaging of moving parts. The device supports a 30 fps refresh rate and a stroboscopic mode that can be switched on/off. External trigger input allows synchronized captures.

Stroboscopic performance
The stroboscopic function is effective at working distances between 3 cm and 15 cm and under low ambient light. Optimal performance is achieved below 20 LUX; effectiveness declines above 80 LUX.

Optical data (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | Depth of Field
20 | 60.2 | 19.5 | 15.6 | 2.5
30 | 33.5 | 13.0 | 10.4 | 1.8
40 | 20.9 | 9.8 | 7.8 | 1.5
50 | 13.9 | 7.8 | 6.3 | -
100 | 4.1 | 3.9 | 3.1 | -
150 | 5.6 | 2.6 | 2.1 | -
200 | 9.9 | 2.0 | 1.6 | -
220 | 11.9 | 1.8 | 1.4 | -
220 | 11.9 | 1.8 | 1.4 | 0.1

Specification
Lighting
Light / LED type: Stroboscopic
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: No

Optics
Magnification: 20x ~ 220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflection coating

Sensor
Sensor type: CMOS
Resolution: VGA (640x480)
Maximum frame rate: 30 fps

Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8, 10 & 11
Software: DinoCapture 2.0 (Windows)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Imaging standards: DirectShow, UVC
Wifi: No

Housing
Housing material: Composite / plastic housing
Magnification lock: Yes
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105 g
Cable length: 1.8 m

Features
Special feature: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No

Information
Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover box, USB cable, connector for external trigger
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €350,00 - €550,00

Technical features

• Model: AM3715TB - EDGE
• Brand: Dino-Lite
• Lighting: Stroboscopic LEDs (8), switchable, IR cut-filter >650 nm, diffuser included (N3C-D)
• Magnification: 20x – 220x; magnification lock: Yes
• Optics: Glass lens with anti-reflection coating; standard working distance
• Sensor: CMOS, VGA (640x480), up to 30 fps
• Interface: USB 2.0; Imaging standards: DirectShow, UVC
• Software: DinoCapture 2.0 (Windows); Supported OS: Windows 7/8/10/11
• Dimensions/weight: 10.5 cm x 3.2 cm; 105 g; cable length 1.8 m
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover box, USB cable, connector for external trigger
• Warranty: 2 years European warranty
• Regulatory: CE, FCC, ROHS
• Price range: €350,00 - €550,00
