Digital video microscope AM73515MT8A

inspectionportablehand-held

Product overview

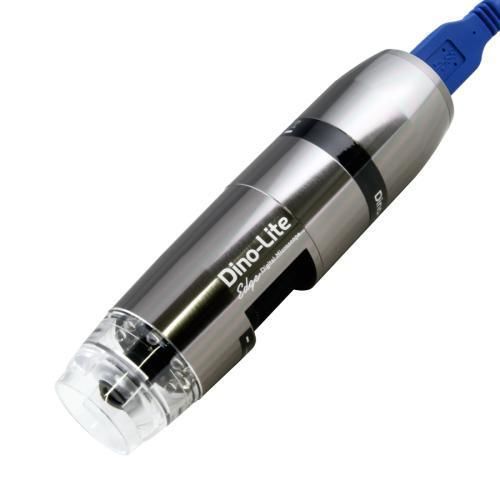

The Dino-Lite AM73515MT8A is a 5.0 MP USB 3.0 Edge-series digital microscope providing 700x–900x magnification with built-in coaxial illumination and Flexible LED Control (FLC) to switch or mix brightfield and coaxial lighting. USB 3.0 SuperSpeed enables high data throughput (up to 5 Gbit/s) and image transfer rates up to 45 FPS at 1280 x 960 for improved colour accuracy and image quality. Coaxial illumination exposes surface details not visible under standard lighting, ideal for inspection of wafer plates, microchips and microelectronics. The unit includes Automatic Magnification Reading (AMR) displayed in the bundled DinoCapture 2.0 (Windows) and is compatible with DinoXcope (Mac). For high-magnification work, use a high-precision stand for optimal focus and stability.

Key features

• 5.0 Megapixel CMOS sensor (2560 x 1920)
• Magnification range: 700x – 900x
• Built-in coaxial illumination with Flexible LED Control (FLC)
• Automatic Magnification Reading (AMR)
• USB 3.0 (SuperSpeed) interface; high frame rates up to 45 fps at 1280 x 960
• Glass lens with anti-reflection coating
• Metal housing with magnification lock and ESD-safe design
• Measurement and calibration functions; microtouch sensor

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
700 | 6.4 | 0.56 | 0.400 | 0.01
750 | 6.3 | 0.52 | 0.375 | 0.01
800 | 6.1 | 0.48 | 0.350 | 0.009
850 | 6.0 | 0.46 | 0.330 | 0.009
900 | 5.9 | 0.43 | 0.315 | 0.008

Note: Listed values may differ slightly. *Without front cap. Unit = mm.

Technical specifications

• Brand: Dino-Lite
• Model: AM73515MT8A (Edge series)
• Lighting - LED type: White; Number of LEDs: 8; LED on/off switchable: Yes; IR cut-filter >650 nm; Diffuser: No; Emission filter: No; Polarizer: No
• Optics - Magnification: 700x ~ 900x; Macro zoom: No; Working distance: standard; Lens type: Glass with anti-reflection coating
• Sensor - Type: CMOS; Resolution: 5.0 Megapixel (2560x1920); Maximum frame rate: 45 fps (max 20 fps video recording)
• Compatibility - Interface: USB 3.0 (cable included); Operating systems: Windows 7/8/10/11, macOS 10.11.16 and up; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac); Imaging standards: DirectShow, UVC; WiFi: No
• Housing - Material: Metal; Magnification lock: Yes; Dimensions: 11.9 cm (L) x 3.3 cm (H); Weight: 110 g; Cable length: 1.8 m
• Features - AMR, FLC, Coaxial illumination, Measurement, Calibration, Microtouch sensor, ESD safe
• Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front covers N3C-C, N3C-E, N3C-O
• Warranty & approvals: 2 years European warranty; Regulatory approval: CE, UKCA
• Notes: Price range indicated €1400.00 - €1600.00; Dino-Lite USB 3.0 models use a custom USB-A/USB-C cable designed for Dino-Lite
