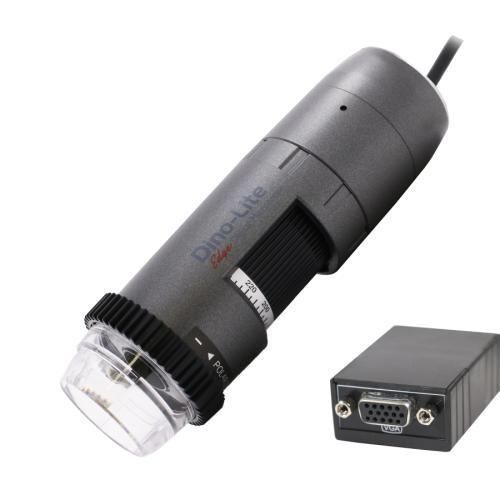

Digital video microscope AM5216ZT

inspectionpolarizinghand-held

Overview The Dino-Lite AM5216ZT connects directly to a VGA screen via a VGA (D-SUB) connector and provides real-time imaging at up to 60 fps in 1280x720 resolution. The Microtouch sensor freezes the image for inspection and, when pressed for 2 seconds, toggles the LEDs. The built-in adjustable linear polarizer reduces glare and reflections on shiny objects (metal, electronics, plastics). The AM5216ZT replaces model AM5116ZT. Also available: AM5216T without polarizer.

Optical Data Table MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 60.2 | 19.5 | 15.6 | 2.5
30 | 33.5 | 13.0 | 10.4 | 1.8
40 | 20.9 | 9.8 | 7.8 | 1.5
50 | 13.9 | 7.8 | 6.3 | -
60 | 9.7 | 6.5 | 5.2 | -
70 | 7.1 | 5.6 | 4.5 | 1.0
80 | 5.5 | 4.9 | 3.9 | -
90 | 4.5 | 4.3 | 3.5 | -
100 | 4.1 | 3.9 | 3.1 | -
110 | 4.0 | 3.6 | 2.8 | -
120 | 4.1 | 3.3 | 2.6 | -
130 | 4.5 | 3.0 | 2.4 | -
140 | 5.0 | 2.8 | 2.2 | -
150 | 5.6 | 2.6 | 2.1 | -
160 | 6.3 | 2.4 | 2.0 | -
170 | 7.1 | 2.3 | 1.8 | -
180 | 8.0 | 2.2 | 1.7 | -
190 | 8.9 | 2.1 | 1.6 | -
200 | 9.9 | 2.0 | 1.6 | -
210 | 10.9 | 1.9 | 1.5 | -
220 | 11.9 | 1.8 | 1.4 | 0.1

Specifications Lighting:
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes (Microtouch)
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear

Optics:
Magnification: 20x ~ 220x
Macro zoom: No
Working distance: Standard (see optical table)
Lens type: Glass with anti-reflection coating

Sensor:
Sensor type: CMOS
Resolution: 1280x720 (720p)
Maximum frame rate: 60 fps

Compatibility:
Interface: VGA (D-Sub)
Wifi: No

Housing:
Housing material: Composite / plastic housing
Magnification lock: Yes
Dimensions: 10.5 cm (L) x 3.2 cm (D)
Weight: 105 g
Cable length: 0.6 m

Features:
Special feature: No
Calibration: No
Microtouch sensor: Yes
ESD safe: No

Information:
Package contents: Microscope, carry pouch, power adapter, front cover box, user manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €600,00 - €800,00

Technical specifications

• Brand: Dino-Lite
• Model: AM5216ZT
• Interface: VGA (D-Sub)
• Sensor: CMOS, resolution 1280x720 (720p)
• Maximum frame rate: 60 fps
• Magnification range: 20x to 220x
• LED: 8 white LEDs, on/off (Microtouch control)
• Polarizer: integrated adjustable linear polarizer
• Lens: glass with anti-reflection coating
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 105 g
• Cable length: 0.6 m
• Package contents: microscope, carry pouch, power adapter, front cover box, user manual
• Warranty: 2 years (Europe)
• Certifications: CE, FCC, ROHS
