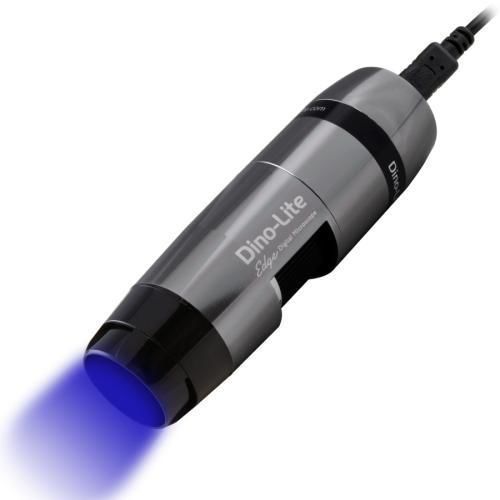

Digital video microscope AM4517MT-BFCW

laboratoryclinicalfluorescence

Overview
The AM4517MT-BFCW is a high-sensitivity fluorescence digital microscope offering 20x–220x magnification for laboratory and clinical imaging. With 435 nm excitation LEDs and a 475–650 nm emission filter, it captures clear images of samples labeled with fluorophores such as eCFP, Alexa Fluor 430 and Fura Red. The system integrates Automatic Magnification Readout (AMR) to simplify accurate measurements.

Design and key capabilities
Engineered for precise fluorescence imaging, this model combines a high-sensitivity sensor with a wide detection range (435 nm excitation, 475–650 nm emission) to detect low-intensity signals. A switchable white LED facilitates focusing and sample positioning. The anodized aluminum alloy housing provides EMI shielding and mechanical resistance suitable for routine laboratory use. Automatic Magnification Readout (AMR), magnification lock and microtouch sensor support reproducible measurements and calibration workflows.

Main features

• 1.3 MP sensor (1280×960) with up to 30 fps
• High-sensitivity sensor optimized for weak fluorescence
• Fluorescence detection: 435 nm excitation, 475–650 nm emission filter
• 7 fluorescence LEDs + 1 switchable white LED for focusing
• Automatic Magnification Readout (AMR) and magnification lock
• Durable anodized aluminum housing with EMI shielding

Optical data (magnification / working distance / field of view (x) / field of view (y) / depth of field) — Unit = mm
Magnification Rate | Working Distance* | Field of View (x) | Field of View (y) | Depth of Field
20x | 59.8 | 19.53 | 14.65 | 7.05
30x | 33.1 | 13.02 | 9.77 | 3.36
40x | 20.5 | 9.77 | 7.32 | 2.02
50x | 13.4 | 7.81 | 5.86 | 1.38
60x | 9.2 | 6.51 | 4.88 | 1.01
70x | 6.7 | 5.58 | 4.19 | 0.79
80x | 5.1 | 4.88 | 3.66 | 0.64
90x | 4.1 | 4.34 | 3.26 | 0.53
100x | 3.7 | 3.91 | 2.93 | 0.45
110x | 3.6 | 3.55 | 2.66 | 0.39
120x | 3.7 | 3.26 | 2.44 | 0.34
130x | 4.1 | 3.01 | 2.25 | 0.30
140x | 4.5 | 2.79 | 2.09 | 0.27
150x | 5.2 | 2.60 | 1.95 | 0.25
160x | 5.9 | 2.44 | 1.83 | 0.22
170x | 6.7 | 2.30 | 1.72 | 0.21
180x | 7.5 | 2.17 | 1.63 | 0.19
190x | 8.5 | 2.06 | 1.54 | 0.18
200x | 9.4 | 1.95 | 1.46 | 0.16
210x | 10.5 | 1.86 | 1.40 | 0.15
220x | 11.5 | 1.78 | 1.33 | 0.14

Specification details
Lighting / LED type: 435 nm excitation; Number of LEDs: 7 FL + 1 White; Infrared filter: No; Diffuser available: No; Emission filter: 475–650 nm; Polarizer: No; Recommended fluorophores: eCFP, Alexa Fluor 430, Fura Red.
Optics: Magnification 20x–220x.
Sensor: Resolution 1.3 MP (1280×960); Maximum frame rate: 30 fps at 1.3 MP; MJPEG modes supported.
Compatibility: Interface USB 2.0; Operating systems: Windows 10/11, macOS 10.14+; Supported image/video formats vary by software (DinoCapture / DinoXcope).
Housing: Magnification lock: Yes; Dimensions: 104 mm (H) × 32 mm (D); Weight: 92 g; Cable length: 1.8 m.
Features: Automatic Magnification Readout (AMR); Measurement and calibration support; Microtouch sensor.
Package contents: Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-LB (Black Long Cap), N3C-OB (Black Open Cap).
Regulatory & warranty: CE, FCC, ROHS; 2 years European warranty.

Technical specifications

• Model: AM4517MT-BFCW
• Fluorescence excitation: 435 nm
• Emission filter: 475–650 nm
• LEDs: 7 FL + 1 White
• Sensor resolution: 1.3 MP (1280×960)
• Magnification range: 20x–220x
• Interface: USB 2.0
• Operating systems: Windows 10/11, macOS 10.14+
• Dimensions: 104 × 32 mm (H × D)
• Weight: 92 g
• Cable length: 1.8 m
• Special features: AMR, magnification lock, microtouch sensor, calibration support
• Warranty: 2 years (European)
• Regulatory: CE, FCC, ROHS
• Price range (indicative): €1200.00 - €1400.00
