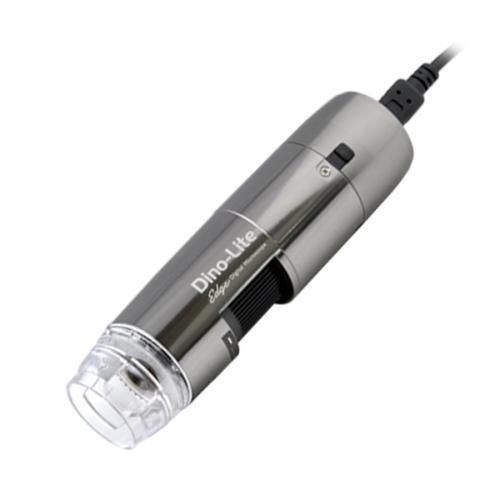

Digital video microscope AF7515MT4A

inspectionhand-heldLED

Product overview
Integrated with coaxial lighting for reflective surfaces, the AF7515MT4A is a digital microscope with a 5.0 megapixel sensor providing brightfield imaging at 420x–470x magnification. Using FLC (Flexible Lighting Control), it enables clear visualization of topographical features such as edges, dents and pores. The model is compatible with the optional WF-20 Wi‑Fi streamer for wireless streaming.

Key features

• Coaxial illumination for reflective surfaces (White LED)
• FLC (Flexible Lighting Control) for enhanced topographical contrast
• 5.0 MP sensor (2592 x 1944)
• Magnification range: 420x–470x
• USB 2.0 interface; WF-20 Wi‑Fi streamer optional
• Measurement and calibration support
• Microtouch sensor and magnification lock

Optical data table
M | WD | FOV (x) | FOV (y) | DOF
420 | 6.7 | 0.94 | 0.71 | 0.04
430 | 7.7 | 0.92 | 0.69 | 0.04
440 | 8.6 | 0.90 | 0.67 | 0.04
450 | 8.6 | 0.88 | 0.66 | 0.04
460 | 8.5 | 0.86 | 0.65 | 0.03
470 | 8.4 | 0.84 | 0.63 | 0.03

Specification summary

• Lighting: White LED, coaxial
• Optics: Magnification 420x–470x
• Sensor: 5.0 MP (2592 x 1944)
• Maximum frame rate: 10 fps at 5.0 MP/3.0 MP (MJPEG); 25 fps at 1.3 MP (MJPEG); 30 fps at VGA (MJPEG); 10 fps at 1.3 MP (YUY2)
• Compatibility: USB 2.0; Windows 7/8/10/11; macOS 10.14 or later
• Housing & dimensions: Magnification lock: Yes; Dimensions: 117 mm (H) x 34 mm (D); Weight: Approx. 101 g; Cable length: Approx. 1.8 m
• Features: Measurement, Calibration, Microtouch sensor
• Package contents: Microscope; Carry pouch; calibration target; user manual; N3C-O (Open cap); N3C-C (Closed cap); N3C-D (diffuser cap); N3C-E (extension cap); N3C-L (Long cap); N3C-S (Side light cap)
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range (indicative): €1100.00 - €1300.00

Technical specifications

• Model: AF7515MT4A
• Brand: Dino-Lite
• Sensor resolution: 5.0 Megapixel (2592 x 1944)
• Magnification: 420x–470x
• Working distance examples: 6.7–8.6 mm (depending on magnification)
• Field of view examples: FOV x ~0.84–0.94 mm; FOV y ~0.63–0.71 mm
• Depth of field examples: 0.03–0.04 mm
• Interface: USB 2.0 (wireless streamer optional)
• Operating systems: Windows 7/8/10/11; macOS 10.14 or later
• Measurement & calibration: supported
• Microtouch sensor: included
• Magnification lock: yes
• Dimensions: 117 mm (H) x 34 mm (D)
• Weight: approx. 101 g
• Cable length: approx. 1.8 m
• Package contents: see above
• Warranty: 2 years (Europe)
• Approvals: CE, FCC, ROHS
