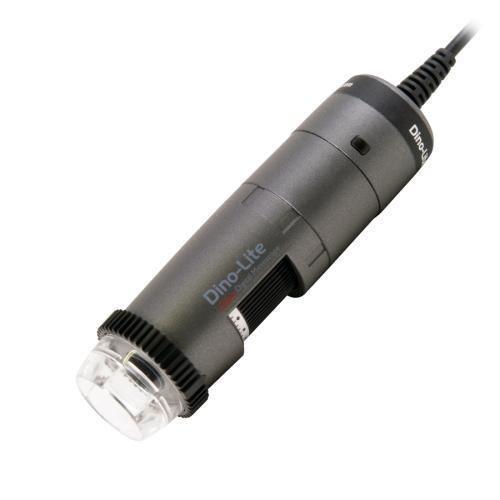

Digital video microscope AF4935ZTLE

inspectionpolarizedhand-held

Overview
The Dino-Lite AF4935ZTLE is a long working distance (LWD) digital inspection microscope that connects via USB and is wireless-ready with the optional WF-20 adapter. The AF4x35 series delivers similar working distances while offering higher magnification range compared with the AM4x15 series.

Main features

• Wireless-ready (WF-20 adapter required, optional)
• Magnification: 10x – 200x
• 1.3 MP Edge sensor (1280 x 1024), up to 30 fps
• Adjustable linear polarizer (integrated)
• Extended Depth of Field (EDOF) and Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC) with 8 white LEDs and diffuser (N3C-D included)
• Extensive measurement functionality and calibration support; Microtouch sensor included

Optical data (mm)
Magnification | Working distance | Field of view (x) | Field of view (y) | Depth of field
10 | 357.7 | 39.1 | 29.3 | 55.3
20 | 174.6 | 19.5 | 14.7 | 14.5
30 | 114.5 | 13.0 | 9.8 | 6.7
40 | 85.2 | 9.8 | 7.3 | 4.1
50 | 68.2 | 7.8 | 5.9 | 2.9
60 | 57.3 | 6.5 | 4.9 | 2.2
70 | 50.0 | 5.6 | 4.2 | 1.7
80 | 44.8 | 4.9 | 3.7 | 1.4
90 | 41.1 | 4.3 | 3.3 | 1.2
100 | 38.4 | 3.9 | 2.9 | 1.0
110 | 36.5 | 3.6 | 2.7 | 0.9
120 | 35.1 | 3.3 | 2.4 | 0.8
130 | 34.2 | 3.0 | 2.3 | 0.7
140 | 33.6 | 2.8 | 2.1 | 0.7
150 | 33.3 | 2.6 | 2.0 | 0.6
160 | 33.2 | 2.4 | 1.8 | 0.5
170 | 33.3 | 2.3 | 1.7 | 0.5
180 | 33.5 | 2.2 | 1.6 | 0.5
190 | 33.8 | 2.1 | 1.5 | 0.4
200 | 34.3 | 2.0 | 1.5 | 0.4

Technical specifications

• Lighting: 8 white LEDs, LED on/off switchable; diffuser (N3C-D included); IR cut-filter >650 nm; no emission filter
• Lens: glass with anti-reflection coating; magnification lock: yes
• Sensor: CMOS 1.3 MP (1280 x 1024), max 30 fps
• Interface: USB 2.0; imaging standards: DirectShow, UVC
• OS & software: Windows 7/8/10/11 (EDOF/EDR supported on Windows), macOS 10.14+; DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Housing: composite/plastic; dimensions: 114 mm (L) x 33 mm (D); weight: 111 g; cable length: 1.8 m
• Special functions: AMR, EDR, EDOF (Windows only), FLC; measurement and calibration supported; Microtouch sensor

Package & warranty

• Package contents: microscope, carry pouch, software CD, calibration target, user manual, N3C-O (open cap), N3C-C (closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (long cap), N3C-S (side light cap)
• Regulatory: CE, FCC, ROHS
• Warranty: 2 years (European warranty)
• Indicative price range: €850.00 – €1050.00
