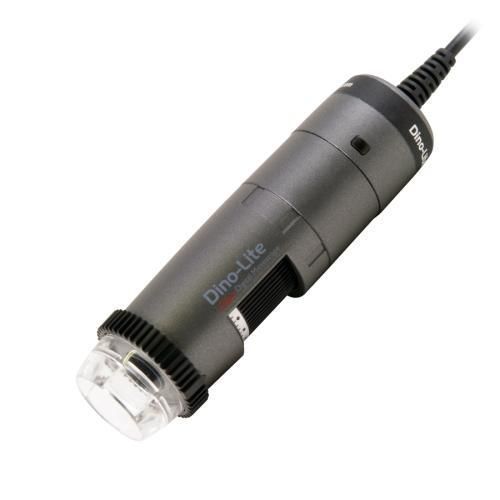

Digital video microscope AM4815ZTL - EDGE

inspectionpolarizedhand-held

Overview
The Dino-Lite AM4815ZTL - EDGE is a digital inspection microscope designed for real-time visual inspection and measurement of miniature and reflective objects. It features an adjustable linear polarizer to reduce glare, interchangeable caps for varied applications and a long working distance up to 230 mm, making it suitable for PCB inspection and other precision tasks. Note: EDR and EDOF functions currently operate on Windows only.

Key features

• Adjustable integrated linear polarizer to reduce reflections and glare
• Extended Dynamic Range (EDR) to reveal details in dark and bright areas
• Extended Depth of Field (EDOF) for improved depth of field via automatic focus stacking
• Interchangeable caps included (open, closed, diffuser, extension, long, side light)
• Long working distance (up to 230 mm)
• Measurement and calibration support; magnification lock

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD (Unit = mm)
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Technical specifications

• Brand: Dino-Lite
• Model: AM4815ZTL - EDGE
• Lighting / LED type: White; Number of LEDs: 8; LED on/off: Yes; Infrared filter: IR cut-filter >650 nm; Diffuser: Yes (N3C-D included); Emission filter: No; Polarizer: Yes, linear
• Magnification: 10× ~ 140×; Macro zoom: No; Working distance: Long (up to 230 mm)
• Lens type: Glass with anti-reflection coating; Magnification lock: Yes
• Sensor: CMOS; Resolution: 1.3 Megapixel (1280×1024); Max frame rate: 30 fps
• Interface: USB 2.0; Imaging standards: DirectShow, UVC; Wifi: Wireless-ready (requires WF-10 WiFi streamer, optional)
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Housing material: Composite / plastic; Dimensions: 105 mm (L) x 32 mm (Ø); Weight: 105 g; Cable length: 1.8 m
• Special features: Extended Dynamic Range (EDR), Extended Depth of Field (EDOF); Measurement: Yes (calibration supported); Microtouch sensor: Yes; ESD safe: No
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (diffuser cap), N3C-E (extension cap), N3C-L (Long cap), N3C-S (Side light cap)
• Regulatory: CE, FCC, ROHS; Warranty: 2 years European warranty; Indicative price range: EUR 800 - EUR 1000
