Digital video microscope AM7515MZT

inspectionfor materials researchpolarized

Overview

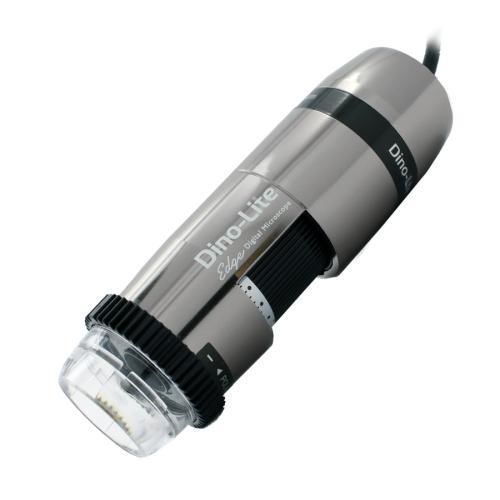

The Dino-Lite AM7515MZT is a professional digital microscope combining a 5 megapixel sensor with modern optics, integrated polarization and a full aluminium housing. It offers a wide magnification range and accurate color rendering for industrial inspection, electronics, materials analysis and quality control.

Main features

• 5 Megapixel Edge sensor (2592 x 1944)
• Magnification range 10–220x
• Integrated polarizer (linear)
• Aluminium / metal housing
• Automatic Magnification Reading (AMR)
• Flexible LED Control (FLC), 8 white LEDs, LED on/off switchable
• Extensive measurement and calibration support
• Exchangeable front caps (multiple types included)

Applications
Standard working distance and broad magnification make the AM7515MZT suitable for inspections of metal, plastic, glass, jewellery, PCB and other reflective surfaces. The integrated polarizer reduces glare on shiny materials; AMR simplifies repetitive measurement workflows.

Optical Data Table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | - | 142.6 | 39.6 | 29.7 | 2.6
20 | 52.7 | 60.1 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | - | 8.0 | 2.2 | 1.7 | -
190 | - | 8.9 | 2.1 | 1.6 | -
200 | - | 9.9 | 2.0 | 1.6 | -
210 | - | 10.9 | 1.9 | 1.5 | -
220 | - | 11.9 | 1.8 | 1.4 | 0.1

Package & included accessories

• Microscope (AM7515MZT)
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O open cap
• N3C-C closed cap
• N3C-D diffuser cap
• N3C-E extension cap
• N3C-L long cap
• N3C-S side light cap

Technical specifications

• Lighting: White LEDs, 8 LEDs, LED on/off switchable, IR cut-filter >650 nm, Diffuser included (N3C-D), Polarizer: Yes (linear)
• Optics: Magnification 10x ~ 220x, Working distance: Standard, Lens type: Glass with anti-reflection coating
• Sensor: CMOS 5.0 Megapixel (2592x1944), Max frame rate: 30 fps
• Interface: USB 2.0; OS support: Windows 7/8/10/11, MacOS 10.9+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC; WiFi: wireless-ready with optional WF-10 streamer
• Housing: Metal/aluminium; Dimensions: 10.5 cm (L) x 3.2 cm (D); Weight: 135 g; Cable length: 1.8 m
• Features: Automatic Magnification Reading (AMR), Flexible LED Control (FLC), Microtouch sensor, Measurement and calibration support, ESD safe
• Regulatory: CE, FCC, ROHS; Warranty: 2 years European warranty; Price range (indicative): EUR 900 - EUR 1100
• Model: AM7515MZT; Brand: Dino-Lite
