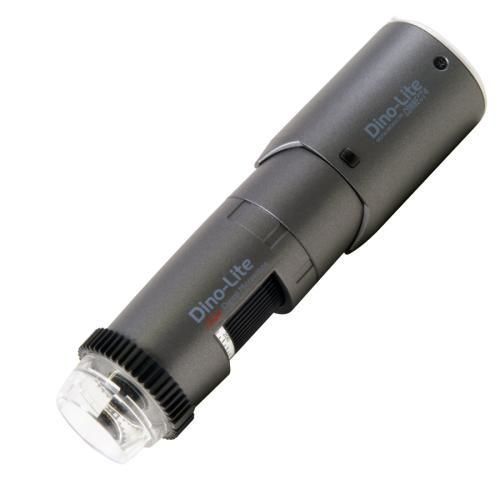

Digital video microscope WF4115ZTL

inspectionpolarizedhand-held

Overview
The Dino-Lite WF4115ZTL is a wired/wireless Long Working Distance (LWD) digital microscope for industrial inspection and measurement. It ships with the WF-20 wireless adapter to operate over WiFi or can be used via USB for cable-connected workflows.

Key features

• Switchable wired (USB 2.0) and wireless (WF-20) operation
• 1.3 Megapixel Edge sensor (1280×1024)
• Magnification range: 10×–140× (LWD)
• Adjustable linear polarizer
• Flexible LED Control (FLC) with 8 white LEDs and on/off switch
• Extensive measurement tools and calibration (calibration target included)
• Microtouch sensor and magnification lock

Notes / compatibility
EDOF/EDR functions are available only under Windows OS. Wireless features require the WF-20 adapter and compatible Dino software; some MacOS functions are available cable-only.

Optical Data Table
Magnification Rate | Working Distance (mm) | Field of View (x) (mm) | Field of View (y) (mm) | Depth of Field (mm)
10 | 234.5 | 39.0 | 31.2 | 12
20 | 112.5 | 19.5 | 15.6 | 4.5
30 | 72.5 | 13.0 | 10.4 | 3.1
40 | 54.5 | 9.8 | 7.8 | 1.8
50 | 43.5 | 7.8 | 6.2 | 1.2
60 | 37.5 | 6.5 | 5.2 | 0.9
70 | 33.7 | 5.6 | 4.5 | 0.6
80 | 31.3 | 4.9 | 3.9 | 0.5
90 | 29.9 | 4.3 | 3.5 | 0.37
100 | 29.2 | 3.9 | 3.1 | 0.28
110 | 29.1 | 3.5 | 2.8 | 0.22
120 | 29.3 | 3.3 | 2.6 | 0.17
130 | 29.8 | 3.0 | 2.4 | 0.12
140 | 30.5 | 2.8 | 2.2 | 0.09

Technical specifications

• Lighting: White LED, 8 LEDs, LED on/off switchable
• IR filter: IR cut-filter >650 nm; Diffuser: N3C-D included
• Lens: Glass with anti-reflection coating
• Sensor: CMOS, 1.3 MP (1280×1024), max 30 fps
• Interface: USB 2.0 (cable); WiFi with WF-20 (wireless)
• OS compatibility (cable): Windows 7/8/10/11; MacOS 10.11.6+ (wireless features limited)
• Software: DinoCapture 2.0 (Windows cable + wireless), DinoXcope (Mac cable only), DinoConnect (wireless only)
• Supported image/video formats: Windows (BMP, GIF, PNG, JPG, TIF, etc.); Mac (JPEG, PNG; MOV)
• Housing: Composite/plastic; Dimensions: 11.4 cm (L) × 3.3 cm (D); Weight: 111 g
• Cable length: 1.8 m; Magnification lock: Yes
• Measurement: Yes; Calibration: Yes; Microtouch sensor: Yes; ESD safe: No
• Regulatory: CE, FCC, ROHS
• Price range (indicative): €800.00 – €1000.00

Package contents

• Microscope WF4115ZTL
• WF-20 wireless adapter
• Carry pouch
• Software CD
• Calibration target
• User manual
• N3C-O (Open cap), N3C-C (Closed cap), N3C-D (Diffuser cap), N3C-extension cap, N3C-L (Long cap), N3C-S (Side light cap)

Warranty & approvals
2 years European warranty; regulatory approvals: CE, FCC, ROHS.
