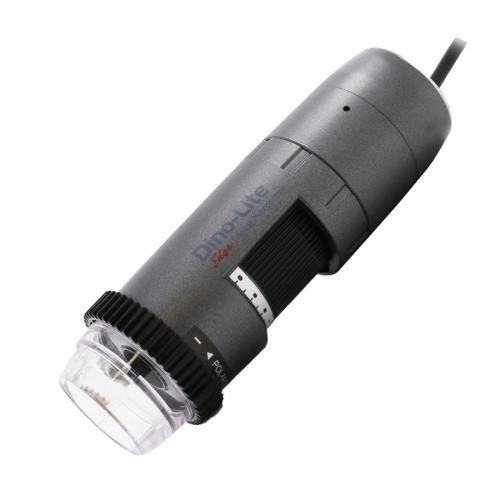

Digital video microscope AM4515ZT4

inspectionpolarizedhand-held

Description
The Dino-Lite AM4515ZT4 is a USB digital microscope offering very high magnification (430–470×) with high-resolution optics capable of resolving details down to 5 µm. The model provides an increased working distance at high magnification for easier handling and inspection of very small objects. The integrated, switchable polarizer reduces glare on reflective materials such as jewelry, plastics and metals. The AM4515ZT4 is supplied with DinoCapture 2.0 software supporting AMR (Automatic Magnification Reading), calibration, measurement, image capture/annotation and video recording. Handheld use is possible; for precision inspection a high-precision stand (e.g. RK-10A) is recommended.

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE* (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
400 | 5.1 | 0.971 | 0.713 |
410 | 6.0 | 0.951 | 0.697 |
420 | 7.3 | 0.926 | 0.680 |
430 | 8.0 | 0.905 | 0.664 |
440 | 8.8 | 0.884 | 0.648 |
450 | 10.0 | 0.867 | 0.636 |
460 | 11.3 | 0.847 | 0.621 |
470 | 11.8 | 0.828 | 0.608 | 0.04
Listed values may differ slightly | *Without front cap | Unit = mm

Lighting

• Light / LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polarizer: Yes, linear (built-in and switchable)

Optics

• Magnification: 430x ~ 470x (resolves details down to 5 µm)
• Macro zoom: No
• Working distance: Increased at high magnification (see Optical Data Table)
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0
• Operating systems: Windows 7, 8, 10 & 11; MacOS 10.9 and up
• Software included: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready with optional WF-10 WiFi streamer

Housing / Mechanical

• Housing material: Composite / plastic
• Dimensions: 10.3 cm (L) x 3.2 cm (D)
• Weight: 100 g
• Cable length: 1.8 m

Features

• Automatic Magnification Reading (AMR)
• Measurement: Yes
• Calibration: Yes
• Microtouch sensor: Yes
• ESD safe: No

Package & Warranty

• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-E (Extension cap)
• Warranty: 2 years (European warranty)

Certifications & Price

• Approvals: CE, FCC, ROHS
• Price range (indicative): EUR 600.00 - 800.00 (excl. taxes)
