Digital video microscope AF7915MZT

inspectionpolarizinghand-held

Product overview

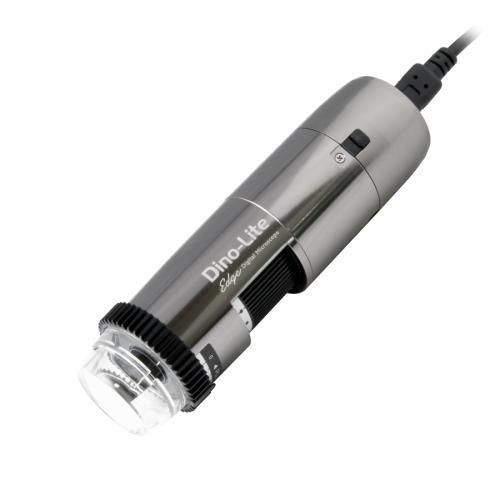

The AF7915MZT is a 5-megapixel handheld digital microscope designed for detailed inspection and measurement of a wide range of materials. It combines a high-resolution edge sensor with features for improved depth, dynamic range and measurement workflows. The unit is compatible with the optional WF-20 Wi‑Fi streamer.

Note
EDOF, EDR and DPQ functions are available on Windows PC only.

Main features

• 5 Megapixel edge sensor (2592 x 1944)
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Adjustable linear polarizer
• Flexible LED Control (FLC), 8 white LEDs
• Wireless-ready (requires optional WF-20)
• Metal housing and magnification lock

Use cases

• Inspection of shiny or reflective objects (metal, plastic, glass, jewelry, electronics)
• Dimensional checks and calibration using built-in AMR and measurement tools
• Imaging of rough or uneven surfaces using EDOF to increase usable depth of field

Optical Data Table
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
10 | 142.6 | 39.6 | 29.7 | 26.0
20 | 60.1 | 19.8 | 14.8 | 7.0
30 | 33.6 | 13.2 | 9.9 | 3.3
40 | 21.0 | 9.9 | 7.4 | 2.0
50 | 14.0 | 7.9 | 5.9 | 1.4
60 | 9.8 | 6.6 | 4.9 | 1.0
70 | 7.3 | 5.7 | 4.2 | 0.8
80 | 5.7 | 4.9 | 3.7 | 0.6
90 | 4.8 | 4.4 | 3.3 | 0.5
100 | 4.3 | 4.0 | 3.0 | 0.4
110 | 4.2 | 3.6 | 2.7 | 0.4
120 | 4.3 | 3.3 | 2.5 | 0.3
130 | 4.7 | 3.0 | 2.3 | 0.3
140 | 5.2 | 2.8 | 2.1 | 0.3
150 | 5.8 | 2.6 | 2.0 | 0.3
160 | 6.5 | 2.5 | 1.9 | 0.2
170 | 7.3 | 2.3 | 1.8 | 0.2
180 | 8.1 | 2.2 | 1.6 | 0.2
190 | 9.1 | 2.1 | 1.6 | 0.2
200 | 10.0 | 2.0 | 1.5 | 0.2
210 | 11.0 | 1.9 | 1.4 | 0.2
220 | 12.1 | 1.8 | 1.3 | 0.2

Listed values may differ slightly | * Without front cap | Unit = mm

Additional details
EDR combines images captured at different exposures to reveal detail in both dark and bright areas. EDOF stacks images at multiple focus levels to increase usable depth of field on rough surfaces. Built-in AMR allows quick on-screen magnification readout for measurements. An adjustable linear polarizer helps reduce glare on reflective samples.

Technical specifications

• Lighting: White LEDs (8), LED on/off switchable; IR cut-filter >650 nm; diffuser (N3C-D included)
• Optics: Magnification 10x–220x; lens: glass with anti-reflection coating; working distance: standard
• Sensor: CMOS, 5.0 Megapixel (2592 x 1944); max frame rate: 30 fps
• Interface / Compatibility: USB 2.0; Windows 7/8/10/11 (EDR/EDOF/DPQ on Windows), macOS 10.9+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Supported formats: Multiple image/video formats per OS (BMP, PNG, JPG, TIF, MOV, WMV, etc.)
• Housing: Metal; magnification lock: Yes; dimensions: 11.5 cm (L) x 3.4 cm (D); weight: 97 g; cable length: 1.8 m
• Features: AMR, EDR, EDOF, FLC, measurement & calibration, microtouch sensor, ESD safe; wireless-ready (WF-20 optional)
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C cap set (O, C, D, E, L, S)
• Warranty & approvals: 2 years European warranty; CE, FCC, ROHS
• Price range (indicative): €1100,00 - €1300,00
