Digital video microscope AM4515T8 - EDGE

for materials researchlaboratoryfor biology

Product overview

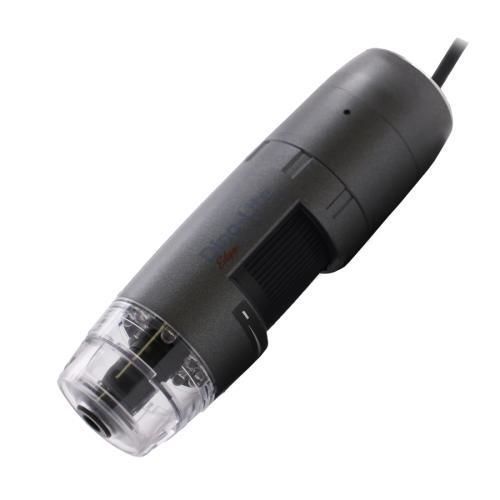

The Dino-Lite AM4515T8 - EDGE is a high-magnification digital microscope offering 700×–900× magnification and high-resolution optics capable of resolving details down to 1.5 µm. The model provides an extended working distance at high magnification to facilitate observation and manipulation of very small objects.

Key functionality and software

• Bundled with DinoCapture 2.0 (Windows); compatible with DinoXcope (Mac).
• Functions: Automatic Magnification Reading (AMR), calibration, measurement, image capture & annotation, and video recording.
• Operable handheld; recommended use with a high-precision stand for stable measurements and repeatable imaging.

Optical data (table)
MAGNIFICATION RATE | WORKING DISTANCE * | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
700x | 6.6 mm | 0.6 mm | 0.4 mm | -
800x | 6.4 mm | 0.5 mm | 0.4 mm | -
900x | 6.3 mm | 0.4 mm | 0.3 mm | 0.016 mm
Unit = mm
* Without front cap

Applications
Suitable for biomedical and scientific research, materials analysis, electronics inspection, failure analysis and other industrial or laboratory tasks requiring very high magnification, portability and accurate measurement.

Characteristics / technical specifications

• Brand: Dino-Lite
• Model: AM4515T8 - EDGE
• Lighting: white LEDs (8), LED on/off switchable
• Infrared filter: IR cut-filter >650 nm
• Diffuser / emission filter / polarizer: not available
• Magnification: 700×–900× (AMR supported)
• Lens: glass with anti-reflection coating
• Sensor: CMOS, 1.3 MP (1280×1024)
• Maximum frame rate: 30 fps
• Interface: USB 2.0
• Operating systems: Windows 7/8/10/11; macOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (macOS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF; (macOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: wireless-ready (requires optional WF-10 WiFi streamer)
• Housing: composite / plastic
• Magnification lock: yes
• Microtouch sensor: yes
• Working distance: see optical data (~6.3–6.6 mm depending on magnification)
• Dimensions: 103 mm (L) × 32 mm (Ø)
• Weight: 100 g
• Cable length: 1.8 m
• Measurement & calibration: supported
• ESD safe: no
• Package contents: microscope, carry pouch, software CD, calibration target, user manual, N3C-O (open cap), N3C-C (closed cap), N3C-E (extension cap)
• Warranty: 2 years European warranty
• Certifications: CE, FCC, ROHS
• Indicative price range: €700.00 - €900.00
