Digital video microscope AM4815ZT

for teachinginspectionlaboratory

Product overview

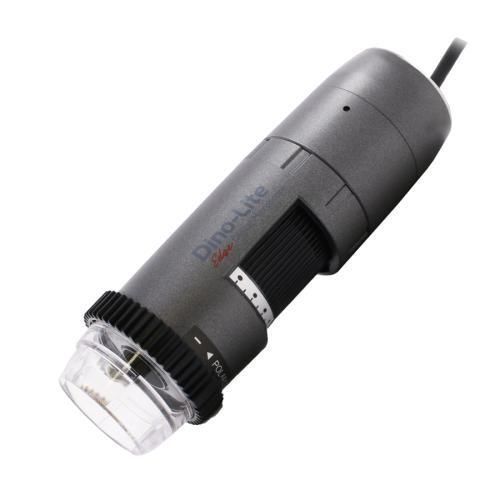

The Dino-Lite AM4815ZT Edge is a USB digital microscope designed for professional visual inspection and documentation. It delivers 20x–220x magnification, a built-in adjustable linear polarizer to reduce glare on reflective surfaces, and advanced imaging options (EDR/EDOF) for enhanced detail and depth.

Applications

• Quality control and production inspection
• Electronics and PCB inspection
• Materials analysis, surface inspection and failure analysis
• Laboratory, research and teaching environments

Key features

• Magnification range: 20x – 220x
• Sensor: CMOS 1.3 Megapixel (1280 x 1024), up to 30 fps
• Built-in adjustable linear polarizer to reduce reflections
• Extended Dynamic Range (EDR) and Extended Depth of Field (EDOF) for improved image detail (Windows only)
• Upgradeable caps for flexible working distances and illumination configurations (multiple caps included)
• Interface: USB 2.0 (DirectShow / UVC compatible) for plug-and-play use

Optical data table (unit = mm)
MAGNIFICATION RATE | WORKING DISTANCE 1 | WORKING DISTANCE 2* | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 52.7 | 60.2 | 19.5 | 15.6 | 2.5
30 | 26.0 | 33.5 | 13.0 | 10.4 | 1.8
40 | 13.4 | 20.9 | 9.8 | 7.8 | 1.5
50 | 6.4 | 13.9 | 7.8 | 6.3 | -
60 | 2.2 | 9.7 | 6.5 | 5.2 | -
70 | - | 7.1 | 5.6 | 4.5 | 1.0
80 | - | 5.5 | 4.9 | 3.9 | -
90 | - | 4.5 | 4.3 | 3.5 | -
100 | - | 4.1 | 3.9 | 3.1 | -
110 | - | 4.0 | 3.6 | 2.8 | -
120 | - | 4.1 | 3.3 | 2.6 | -
130 | - | 4.5 | 3.0 | 2.4 | -
140 | - | 5.0 | 2.8 | 2.2 | -
150 | - | 5.6 | 2.6 | 2.1 | -
160 | - | 6.3 | 2.4 | 2.0 | -
170 | - | 7.1 | 2.3 | 1.8 | -
180 | 0.5 | 8.0 | 2.2 | 1.7 | -
190 | 1.4 | 8.9 | 2.1 | 1.6 | -
200 | 2.4 | 9.9 | 2.0 | 1.6 | -
210 | 3.4 | 10.9 | 1.9 | 1.5 | -
220 | 4.4 | 11.9 | 1.8 | 1.4 | 0.1

Technical specifications (summary)

• Lighting: 8 white LEDs, IR cut-filter >650 nm, diffuser included (N3C-D), LED on/off
• Optics: Glass lens with anti-reflection coating
• Sensor & performance: CMOS 1.3 MP (1280x1024), up to 30 fps
• Compatibility: USB 2.0, DirectShow/UVC, Windows 7/8/10/11, MacOS 10.9+, DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Housing & size: Metal housing, 10.5 cm (L) x 3.2 cm (D), 105 g, 1.8 m cable
• Features: Measurement and calibration support (software), magnification lock, microtouch sensor
• Regulatory & warranty: CE, FCC, ROHS; 2 years European warranty
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O/N3C-C/N3C-D/N3C-E/N3C-L/N3C-S caps
• Indicative price range: €800 - €1000

Notes
EDR and EDOF functions are currently supported under Windows only. Also available: AM4815T (Edge without polarizer).
