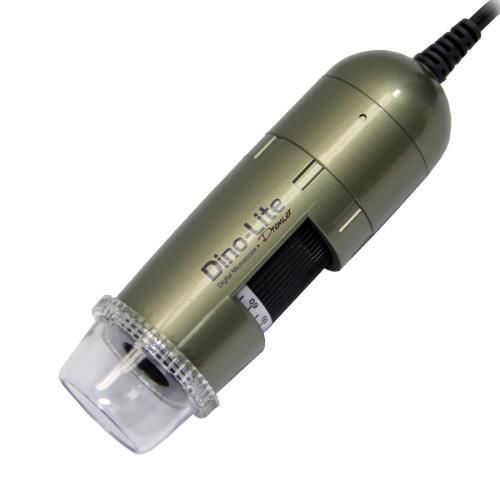

Digital video microscope AM4113ZT4

inspectionpolarizingLED

Product overview
The AM4113ZT4 is a USB digital microscope providing 430x–470x magnification for detailed inspection of small parts and surfaces. The built-in switchable linear polarizer reduces glare on high-reflectance materials such as jewelry, plastics and metals, enabling clearer imaging for quality control and inspection.

Optical data

• 430x — Working distance: -0.45 mm | FOV X: 0.91 mm | FOV Y: 0.73 mm | Depth of field: 0.1 mm
• 440x — Working distance: 0.4 mm | FOV X: 0.89 mm | FOV Y: 0.71 mm | Depth of field: 0.1 mm
• 450x — Working distance: 1.35 mm | FOV X: 0.87 mm | FOV Y: 0.70 mm | Depth of field: 0.1 mm
• 460x — Working distance: 2.3 mm | FOV X: 0.85 mm | FOV Y: 0.68 mm | Depth of field: 0.1 mm
• 470x — Working distance: 3.15 mm | FOV X: 0.83 mm | FOV Y: 0.67 mm | Depth of field: 0.1 mm
• Listed values may differ slightly | Unit = mm

Lighting

• LED type: White
• Number of LEDs: 8
• LED on/off switchable: Yes
• Infrared filter: IR cut-filter >650 nm
• Diffuser available: No
• Emission filter: No
• Polarizer: Built-in, switchable linear polarizer

Optics

• Magnification: 430x–470x
• Macro zoom: No
• Working distance: See optical data per magnification
• Lens type: Glass with anti-reflection coating

Sensor

• Sensor type: CMOS
• Resolution: 1.3 Megapixel (1280x1024)
• Maximum frame rate: 30 fps

Compatibility

• Interface: USB 2.0 (DirectShow, UVC)
• Operating systems: Windows 7/8/10/11, MacOS 10.9 and up
• Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows): WMV, FLV, SWF
• Supported image formats (MacOS): JPEG, PNG
• Supported video formats (MacOS): MOV
• Imaging standards: DirectShow, UVC
• WiFi: Wireless-ready (requires WF-10 WiFi streamer, optional)

Housing

• Material: Composite / plastic housing
• Magnification lock: Yes
• Dimensions: 10.5 cm (L) x 3.2 cm (D)
• Weight: 100 g
• Cable length: 1.8 m

Features

• Measurement function: Yes
• Calibration: Yes (calibration target included)
• Microtouch sensor: Yes
• ESD safe: No
• Special feature: —

Information

• Package contents: Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual
• Warranty: 2 years European warranty
• Regulatory approvals: CE, FCC, ROHS
• Price range indication: €400,00 - €600,00

Technical specifications

• Model: AM4113ZT4
• Brand: Dino-Lite
• Magnification: 430x–470x
• Optical field of view (approx.): X 0.83–0.91 mm, Y 0.67–0.73 mm
• Depth of field: 0.1 mm
• Working distance: -0.45 mm to 3.15 mm depending on magnification
• Lens: Glass with anti-reflection coating
• Polarizer: Built-in, switchable linear polarizer
• Illumination: 8 white LEDs, switchable
• IR cut-filter: >650 nm
• Sensor: 1.3 MP CMOS (1280x1024), up to 30 fps
• Interface: USB 2.0 (DirectShow, UVC)
• Software compatibility: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Dimensions / Weight: 10.5 cm x 3.2 cm / 100 g
• Cable length: 1.8 m
• Package: See above
• Warranty & Regulatory: 2 years (EU), CE/FCC/ROHS
