Digital video microscope AM4117MZT

inspectionlaboratorypolarized

Overview

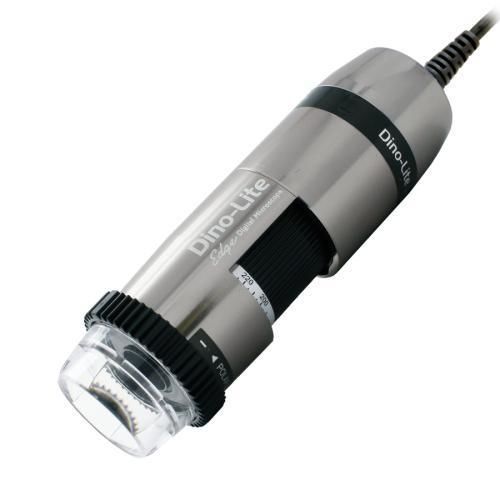

The AM4117MZT (EDGE PLUS series) is a compact industrial digital microscope offering 10–220x magnification with a 1.3 MP sensor (1280x1024) and USB 2.0 connectivity at up to 30 fps. Housed in metal with an adjustable linear polarizer and Flexible LED Control, it is designed for inspection, quality control and laboratory measurements where colour fidelity and clarity are required.

Main features

• 1.3 Megapixel EDGE PLUS sensor (1280x1024)
• Flexible LED Control (FLC) with 8 white LEDs
• Magnification range: 10x–220x
• Adjustable linear polarizer
• Maximum frame rate: 30 fps
• Metal housing; ESD safe; magnification lock
• Measurement and calibration support; Microtouch sensor
• Included caps and accessories (diffuser N3C-D included)

Optical data table
MAGNIFICATION RATE | WORKING DISTANCE* (mm) | FIELD OF VIEW (X) (mm) | FIELD OF VIEW (Y) (mm) | DEPTH OF FIELD (mm)
10 | 142.6 | 39.1 | 29.3 | 26.1
20 | 59.5 | 19.5 | 14.7 | 5.36
30 | 32.9 | 13.0 | 9.8 | 2.58
40 | 20.2 | 9.8 | 7.3 | 1.56
50 | 13.2 | 7.8 | 5.9 | 1.07
60 | 9.0 | 6.5 | 4.9 | 0.79
70 | 6.4 | 5.6 | 4.2 | 0.62
80 | 4.8 | 4.9 | 3.7 | 0.50
90 | 4.0 | 4.3 | 3.3 | 0.42
100 | 3.5 | 3.9 | 2.9 | 0.36
110 | 3.3 | 3.6 | 2.7 | 0.31
120 | 3.5 | 3.3 | 2.4 | 0.27
130 | 3.8 | 3.0 | 2.3 | 0.24
140 | 4.3 | 2.8 | 2.1 | 0.22
150 | 4.9 | 2.6 | 2.0 | 0.20
160 | 5.6 | 2.4 | 1.8 | 0.18
170 | 6.4 | 2.3 | 1.7 | 0.17
180 | 7.3 | 2.2 | 1.6 | 0.15
190 | 8.2 | 2.1 | 1.5 | 0.14
200 | 9.2 | 2.0 | 1.5 | 0.13
210 | 10.2 | 1.9 | 1.4 | 0.13
220 | 11.3 | 1.8 | 1.3 | 0.12
Listed values may differ slightly. *Without front cap. Unit = mm

Technical specifications

• Lighting: White LEDs (8); LED on/off switchable; IR cut-filter >650 nm; Diffuser: Yes (N3C-D included)
• Optics: Magnification 10x–220x; Lens: glass with anti-reflection coating; Working distance: see table
• Sensor: CMOS 1.3 Megapixel (1280x1024); Max frame rate: 30 fps
• Compatibility: USB 2.0 interface; OS: Windows 7/8/10/11, MacOS 10.11.6+; Software: DinoCapture 2.0 (Windows), DinoXcope (Mac)
• Housing: Metal, ESD safe; Magnification lock; Dimensions: 10.5 cm (L) x 3.3 cm (D); Weight: 90 g; Cable: 1.5 m
• Functions: Flexible LED Control (FLC); Measurement & calibration; Microtouch sensor
• Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O (open cap), N3C-C (closed cap), N3C-D (diffuser), N3C-E (extension), N3C-L (long), N3C-S (side light)
• Warranty: 2 years European warranty; Regulatory: CE, FCC, ROHS
• Price range indicated: €900,00 - €1100,00
